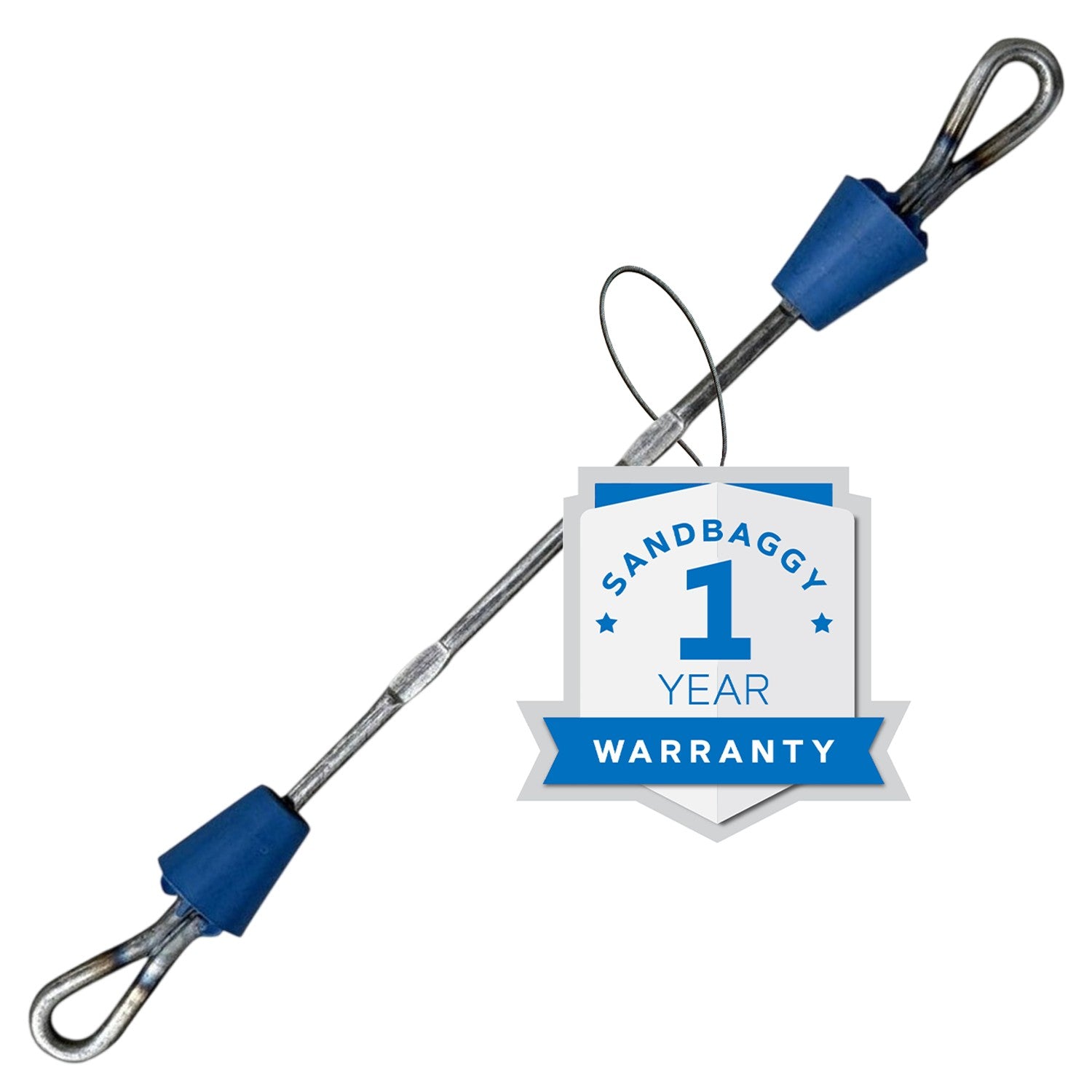

8" Speed Lock Snap Tie for Concrete Walls with Self-Centering Cone

Secure, Efficient, and Safe Formwork – Ideal for Contractors Seeking Quick and Reliable Wall Alignment

The 8-inch Speed Lock Snap Tie securely holds modular form walls while allowing quick installation and removal. Made from durable 5.7 mm steel, each tie supports a 2250 lb safe working load (2:1 safety factor) and features a self-centering cone for precise alignment. It adapts to plywood and lumber variations, ensuring reliable break-back operation even on imperfect surfaces.

Ideal for standard and radius forming, it reduces lumber use and nailing compared to traditional systems. At just 0.23 lbs each, it provides a safer, faster, and more efficient formwork solution.

Shop all Sandbaggy Concrete Forming Supplies.

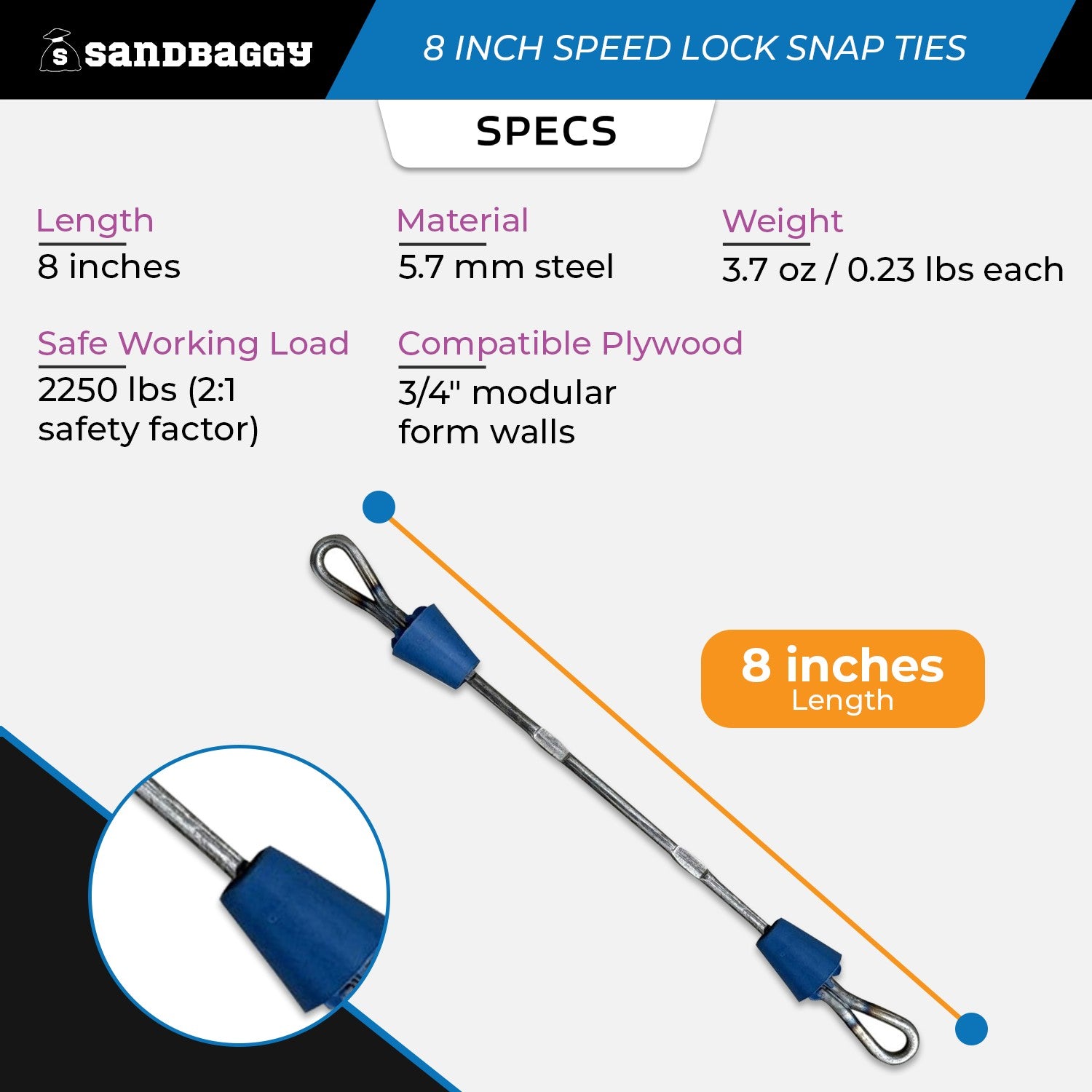

Specs

• Length: 8 inches
• Material: 5.7 mm steel
• Safe Working Load: 2250 lbs (2:1 safety factor)
• Weight: 3.7 oz / 0.23 lbs each
• Compatible Plywood: 3/4" modular form walls


Features

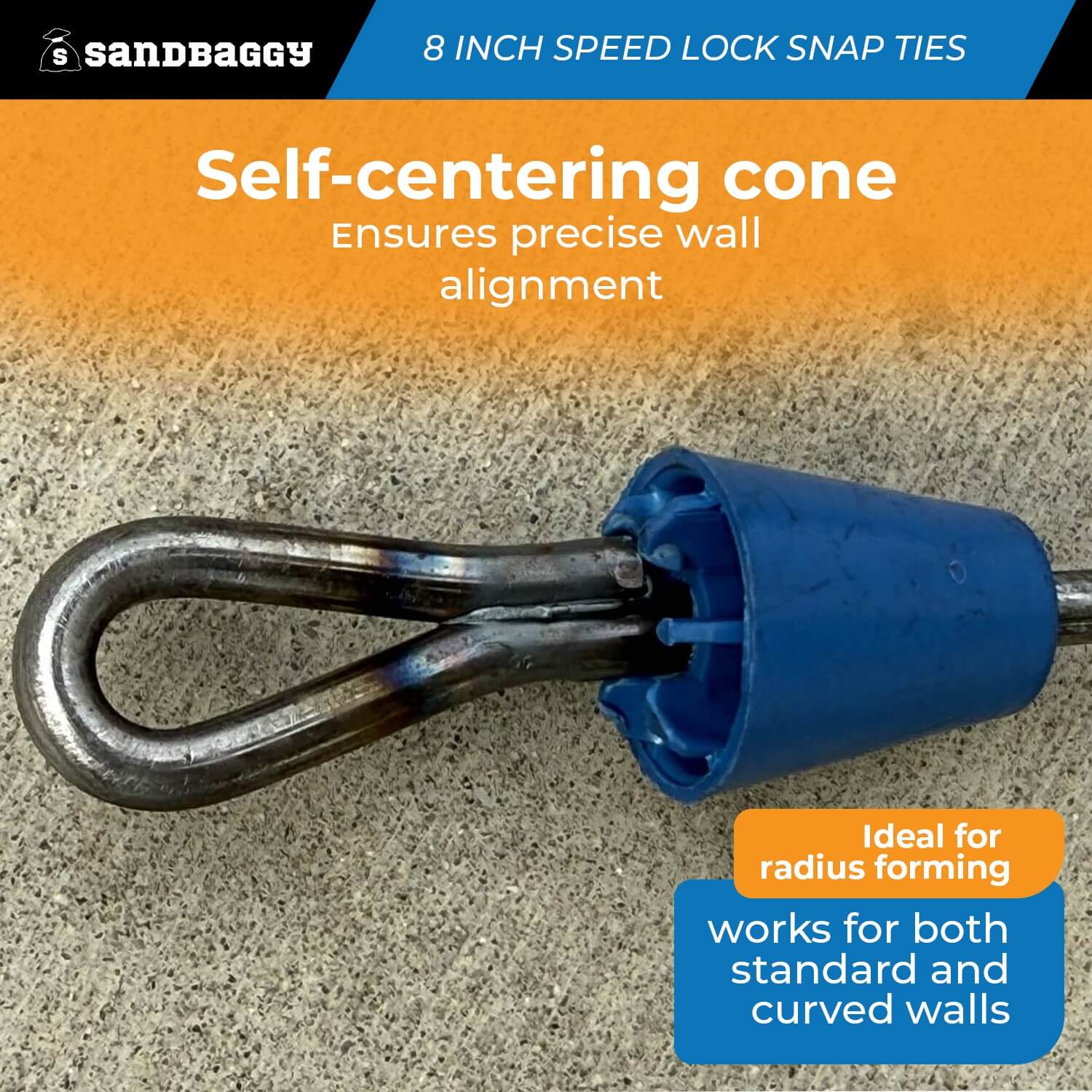

• Self-centering cone: ensures precise wall alignment
• Adapts to imperfect walls: accommodates plywood and lumber variations
• Reduces lumber and nailing: saves materials and installation time
• Ideal for radius forming: works for both standard and curved walls
• Easy to install and remove: speeds up formwork operations
• Supports safe, efficient formwork: reliable and durable performance

FAQs

What are snap ties for concrete forms used for?

Snap ties are used to secure concrete form walls in place during pouring. They maintain proper spacing, ensure wall alignment, and support safe and efficient break-back operation once the concrete has set.

Can I use this tie with any plywood thickness?

No, it works with 3/4" plywood form walls only.

Is the tie reusable?

Yes, it can be installed and removed multiple times.
