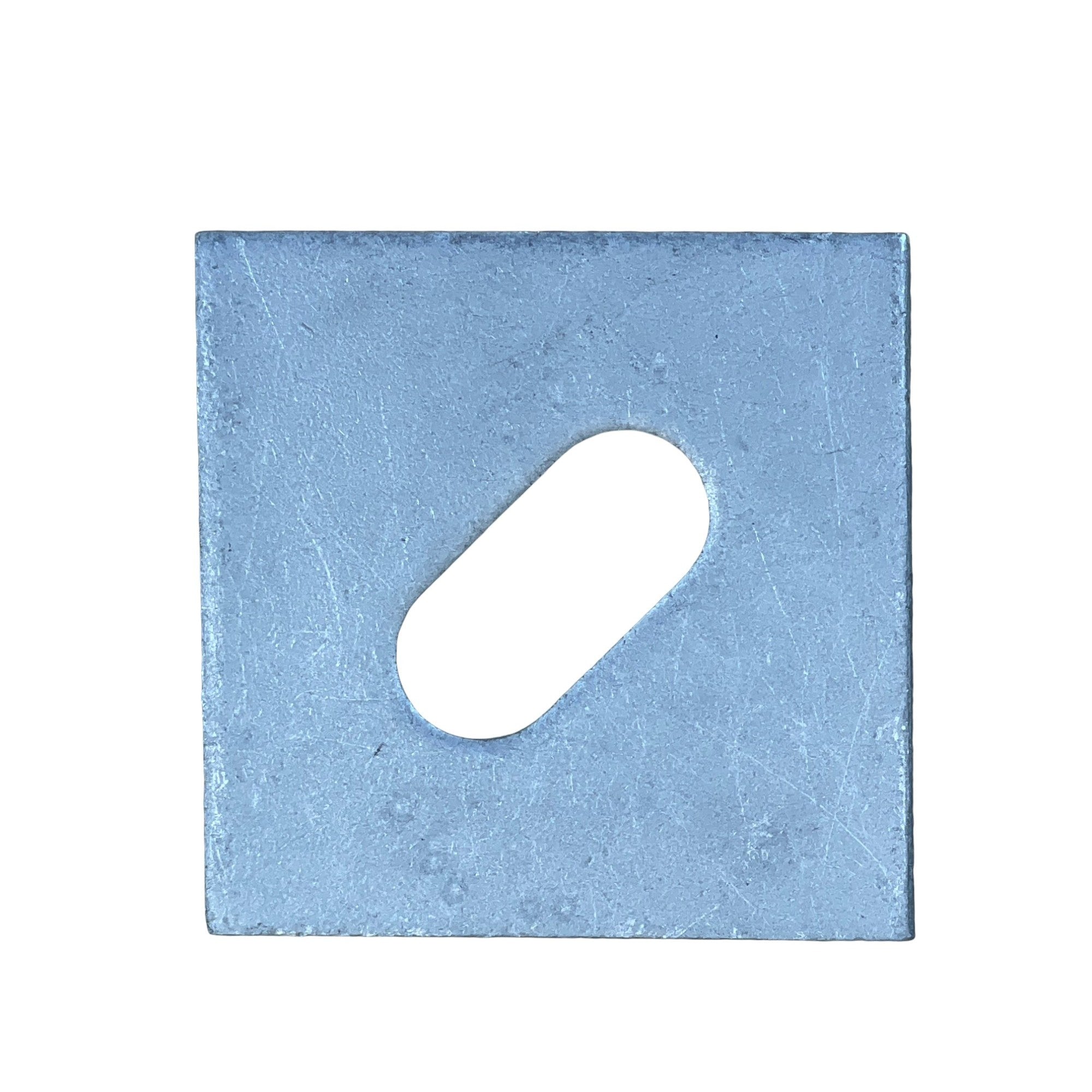

3" x 3" Slotted Square Plate Washer (Galvanized) - 5/8" Anchor Bolt Diameter

Secure Wood-to-Concrete With These Sturdy Steel Square Washer!

Constructed from sturdy 6 gauge steel, this 3" x 3" galvanized slotted square plate washer (also known as a bearing plate) is designed for use with 5/8" diameter anchor bolts or rods. Its heavy-duty design prevents pull-through and promotes a secure connection, while increasing the bearing surface to prevent wood splitting or cracking. Slotted square washers are ideal for anchoring wood to concrete slabs, this washer provides long-lasting structural stability.

These square plate washers are hot-dip galvanized for superior rust protection compared to electro-galvanized products, making them highly durable and built-to-last!

Sandbaggy carries a variety of concrete forming supplies.

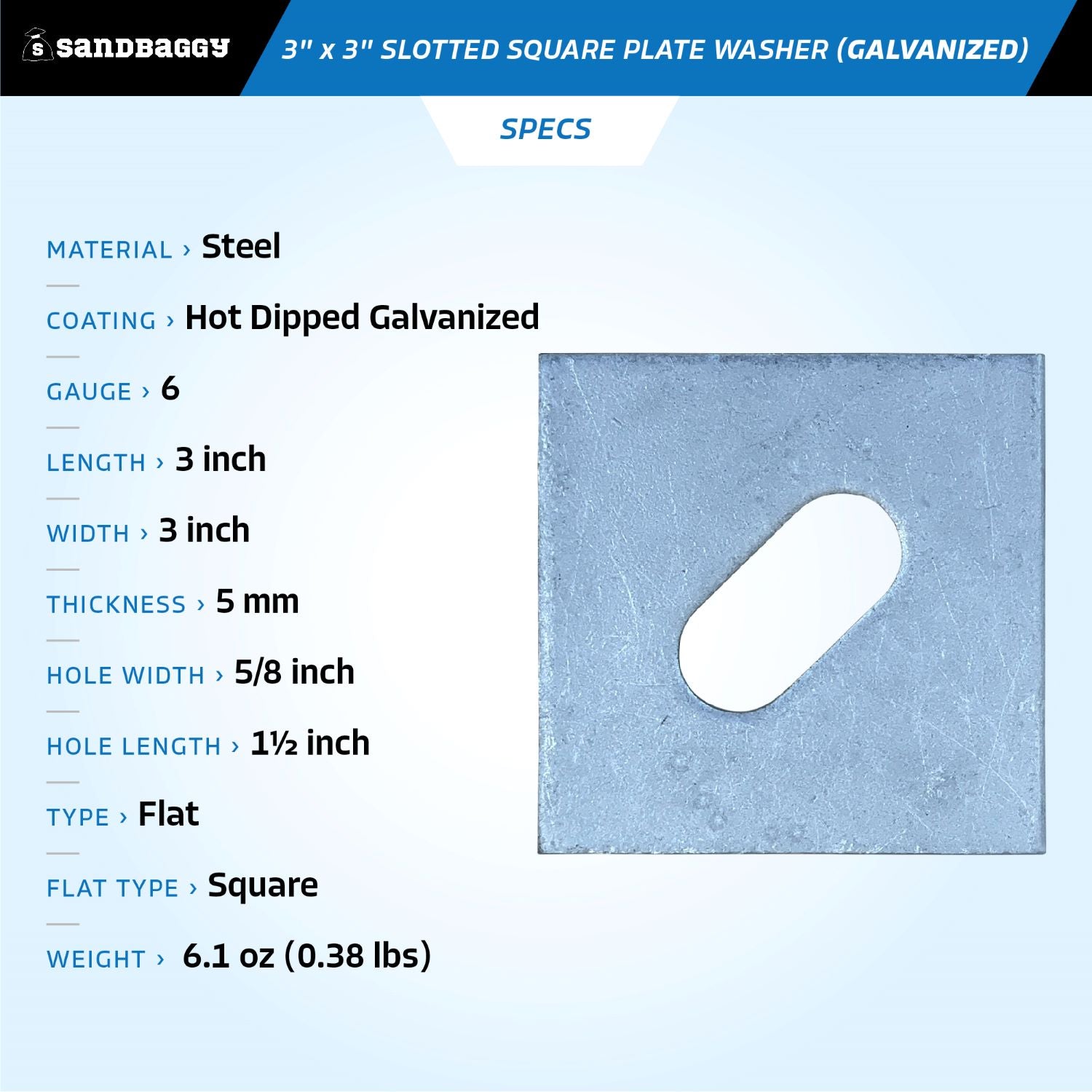

Specs

• Material: Steel

• Coating: Hot Dipped Galvanized
• Gauge: 6
• Length: 3 inch
• Width: 3 inch
• Thickness: 5 mm
• Hole Width: 5/8 inch
• Hole Length: 1-1/2 inch
• Type: Flat
• Flat Type: Square
• Weight: 0.38 lbs

Features

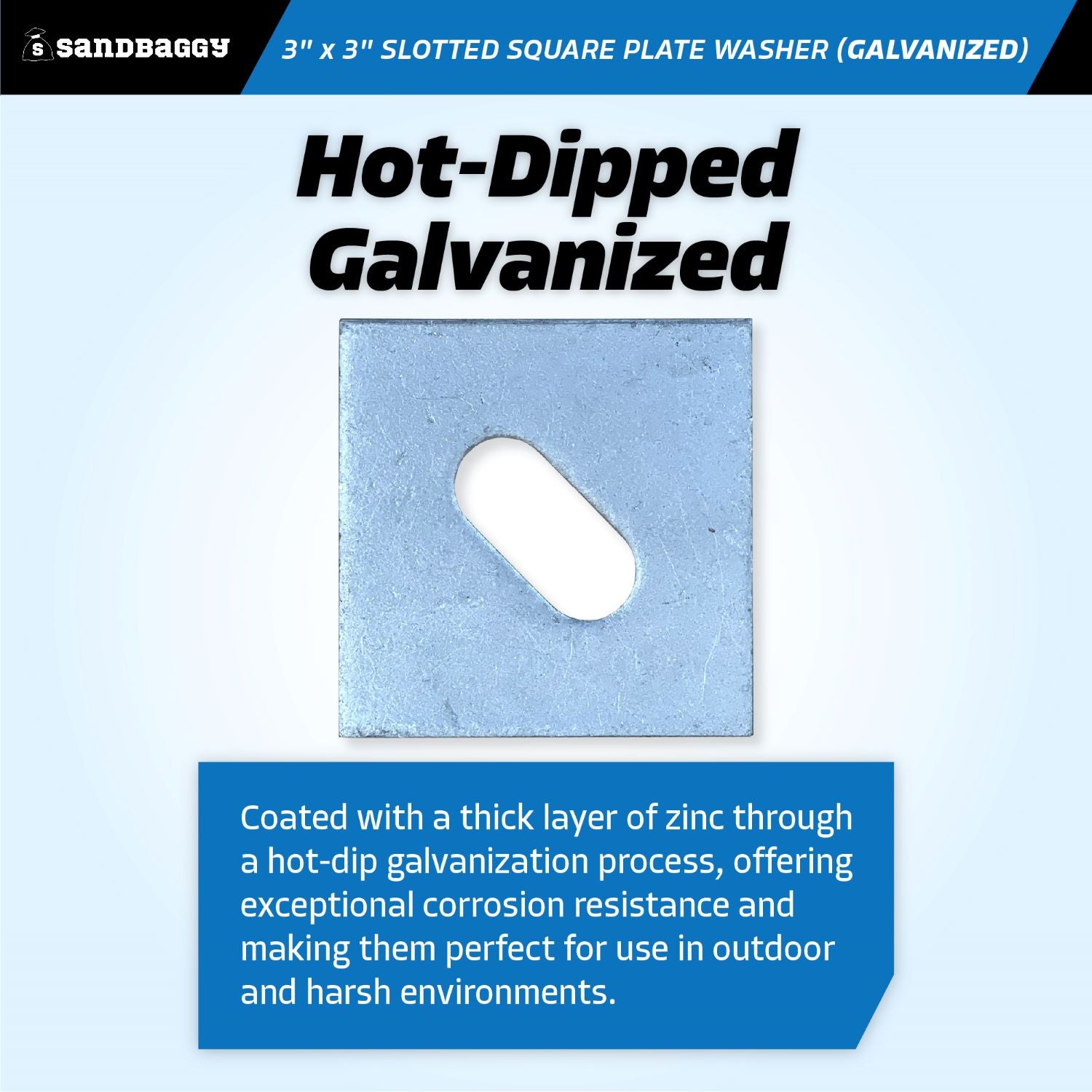

• Hot-Dipped Galvanized: Coated with a thick layer of zinc through a hot-dip galvanization process, offering exceptional corrosion resistance and making them perfect for use in outdoor and harsh environments.

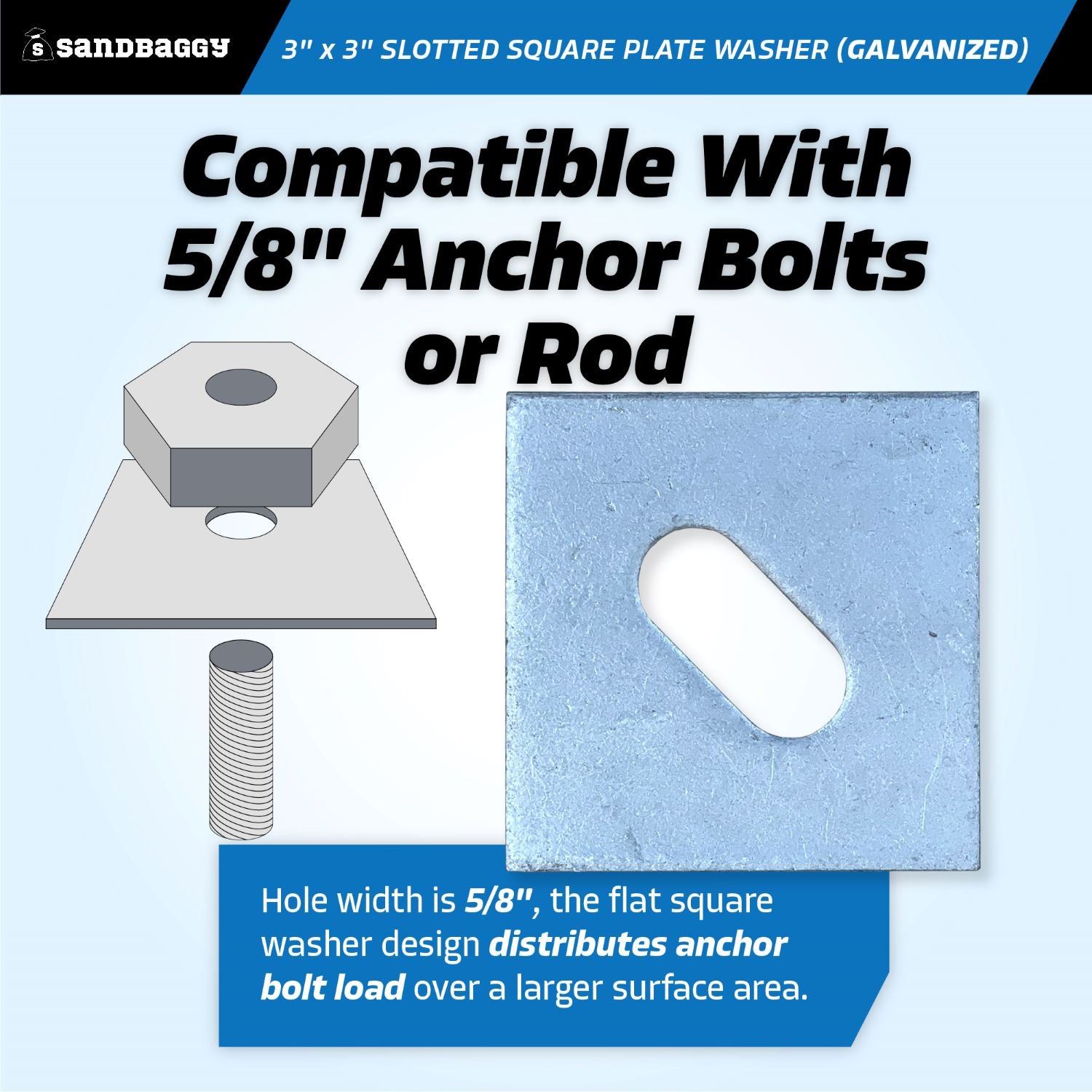

• Compatible With 5/8" Anchor Bolts or Rod: Hole width is 5/8", the flat square washer design distributes anchor bolt load over a larger surface area.
• Ensures Secure Wood-To-Concrete Connection: Prevents anchor bolt pull-through in wood
• Prevent Wood Splitting or Cracking that may occur around the anchor bolt, ensuring structural stability and integrity.
• Heavy 6 Gauge Steel: Constructed from 5 mm (0.20") thick steel to promote long-lasting structural stability.

• Maintains Alignment: Square shape prevents rotation and maintains alignment under stress.

FAQ

Hot Dipped Galvanized vs Electro Galvanized Steel

In short hot dipped galvanized steel offers more rust protection, while electro galvanized steel has a smoother finish and is better for applications requiring tight tolerances.

What are square washers called?

Square washers, also referred to as construction washers, plate washers, or fish plates in certain contexts.

Why use square washers?

Square washers offer several advantages over traditional round washers:

• Increased load distribution: They provide a larger surface area to distribute the load of a bolt or screw, reducing pressure and preventing damage to the underlying material.
• Prevent rotation: Their square shape helps prevent the fastener from rotating, ensuring a secure connection.

What is the difference between a flat washer and a square washer?

Square washers are a type of flat washer, though flat washers generally refer to round washers.

• Shape: Flat washers are round, while square washers are, well,
• Load distribution: Square washers generally have a larger surface area than flat washers of the same nominal size, offering better load distribution.
