Concrete Turnbuckle Form Aligner With Bent Plate
best concrete turnbuckle with bent plate
Concrete Turnbuckle Form Aligner - Adjustable Wall Brace
Concrete Turnbuckle Form Aligner - Adjustable Wall Brace
Concrete Turnbuckle Form Aligner - Adjustable Wall Brace
Concrete Turnbuckle Form Aligner - Adjustable Wall Brace
Concrete Turnbuckle Form Aligner - Adjustable Wall Brace
concrete turnbuckles for concrete walls
rust resistant 11 gauge steel
adjustable turnbuckle brace for concrete forms
concrete turnbuckle form aligner with nail holes
35 inch adjustable Concrete Turnbuckle Form Aligner With Bent Plate
2.5 inch adjustable concrete turnbuckle
concrete turnbuckle made from 11 gauge rust resistant steel
concrete turnbuckle form aligner with 3" x 5" bent plate
concrete turnbuckles with bent plate for construction with nail holes
concrete turnbuckles for tightening
adjustable concrete turnbucke extends to 37.5 inch length
Concrete Turnbuckle Form Aligner - Adjustable Wall Brace
my gallery images/videos

Concrete Turnbuckle Form Aligner - Adjustable Wall Brace

  • Regular price $74.00 Sale price $37.00
  • Save $37



Free shipping to continental USA

All orders placed before 12PM PST Monday - Friday are shipped same day (holidays excluded).



Accurately Position and Plumb Concrete Formwork!

This Concrete Turnbuckle Form Aligner is an indispensable asset for any concrete contractor. It lets you precisely position and plumb your concrete forms, for perfect walls, columns, and beams every time.

Our Concrete Turnbuckle Brace is easy to use and can be adjusted to fit varying form sizes and designs. Available in both bent and flat plate options, and is made of 11 gauge rust resistant steel for sustained strength. For sale, as low as $13.50 each.

Sandbaggy carries a variety of concrete forming supplies.


Specs

  • Material: Steel
    • Bottom Plate: 7 Gauge Steel
    • Angle Bar: 11 Gauge Steel
  • Color: Red
  • Rust Resistant: Yes
  • Reusable: Yes
  • Length Range: 35 to 37.5 inch (expandable)
    • Adjustment Range: 2.5 inch
  • Bottom Plate: 5 inch x 3 inch
  • Width: 1.75 inch
  • Weight: 7 lb

Features

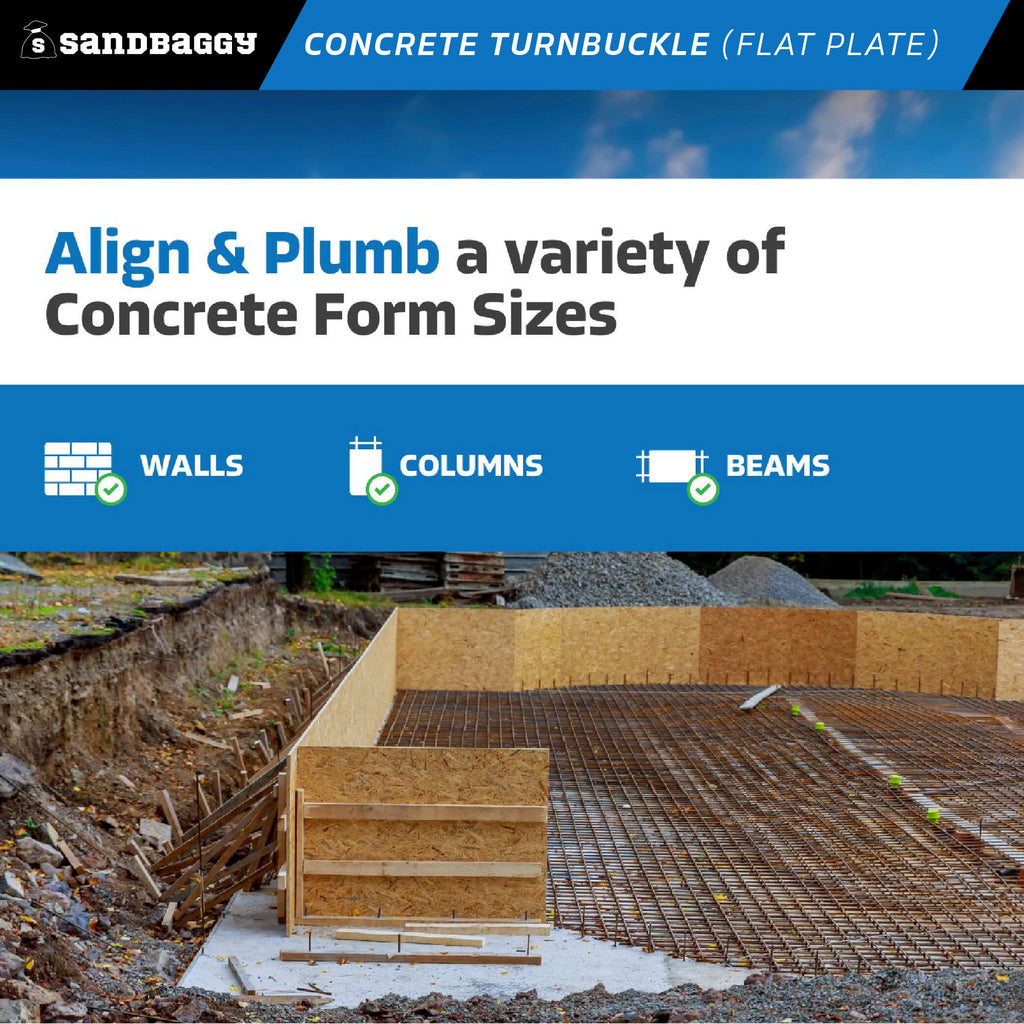

  • Align & Plumb A Variety Of Concrete Form Sizes! Expands from 35 to 37.5 inches to fit a variety of concrete form sizes. Great for wall framing, column forms, and beam forms.
  • Rust Resistant Great For Construction Applications - Constructed of robust, rust-resistant 11 gauge steel for extended life.
  • Bent Plate Improves Grip & Adaptability (For Uneven Surfaces & Curved Forms): The 3" x 5" angled plate offers superior grip on uneven surfaces and allows for better conformity around curved walls or unique architectural features, ensuring formwork stability and versatility for diverse construction needs.

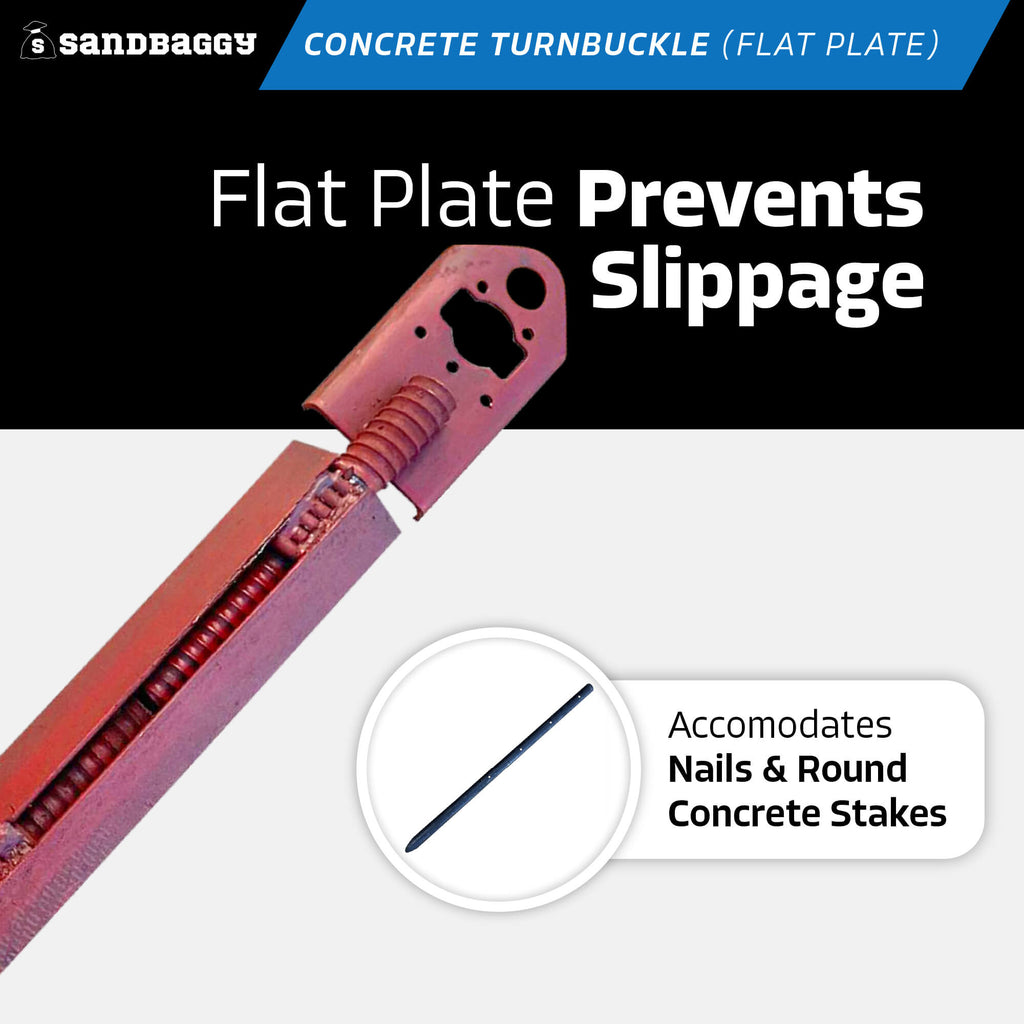

  • Flat Plate for Easy Installation & Stability (For Flat, Level Surfaces): The flat plate design offers a simple and quick installation process. It excels at providing stability and alignment for formwork on level surfaces like walls and slabs.
  • Attach to 2x4 lumber braces at the top and bottom. Securely attaches to the wood framing of your wall for a reliable installation.
  • Easy To Adjust with an adjustment of up to 2.5 inches. The combination of the rust resistant steel and easy to clean design, ensure you can continue to reuse this product.
  • Accommodates Nails & Round Concrete Stakes: Comes with nail holes for secure attachment to formwork. Has a large 15/16" hole in the center of the plate to accommodate 3/4" or 7/8" round steel stakes when mounting the bracket from the ground up.

FAQ

Concrete turnbuckle bent vs flat plate

When choosing concrete turnbuckles, consider the type of surface you're working with. Flat plates are ideal for flat, level surfaces like walls and slabs, offering stability and ease of use. Bent plates, with their angled design, are better suited for uneven surfaces or creating curved forms, providing flexibility and contouring capabilities for unique architectural features.

What is a Concrete Turnbuckle Form Aligner?

The Concrete Turnbuckle Form Aligner is a tool for precisely aligning and leveling concrete forms. Two threaded components are linked by a body, and the turnbuckle's tension can be adjusted by rotating the body.

What is the purpose of a Concrete Turnbuckle Form Aligner?

The purpose of a Concrete Turnbuckle Form Aligner is to ensure that concrete forms are accurately positioned and plumb. This is important because it ensures that the concrete walls, columns, or beams that are poured into the forms will be straight and true.

What are the benefits of using a Concrete Turnbuckle Form Aligner?

There are many benefits to using a Concrete Turnbuckle Form Aligner, including:

  • Improved accuracy: Precisely position and plumb concrete forms.
  • Increased efficiency: Allows for quick and easy aligning and plumbing of concrete forms.
  • Reduced costs: Can reduced labor costs and waste.
  • Improved safety: Help to prevent concrete forms from moving or collapsing, thus reducing the risk of accidents.

How do I use a Concrete Turnbuckle Form Aligner?

Attach the Concrete Turnbuckle Form Aligner to the top and bottom of the forms and use a level to ensure the forms are true. Finally, tighten the turnbuckles until the forms are perfectly vertical.
