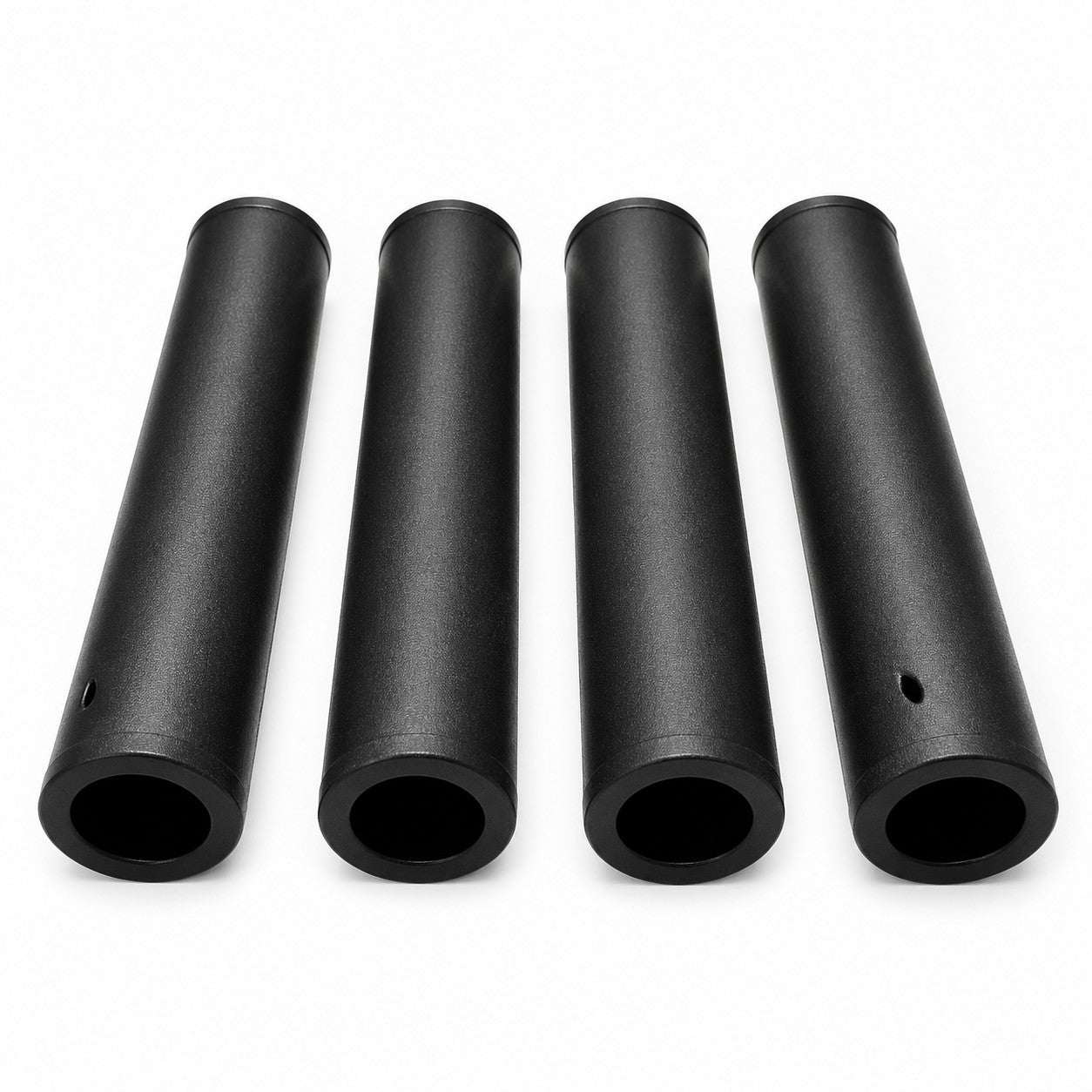

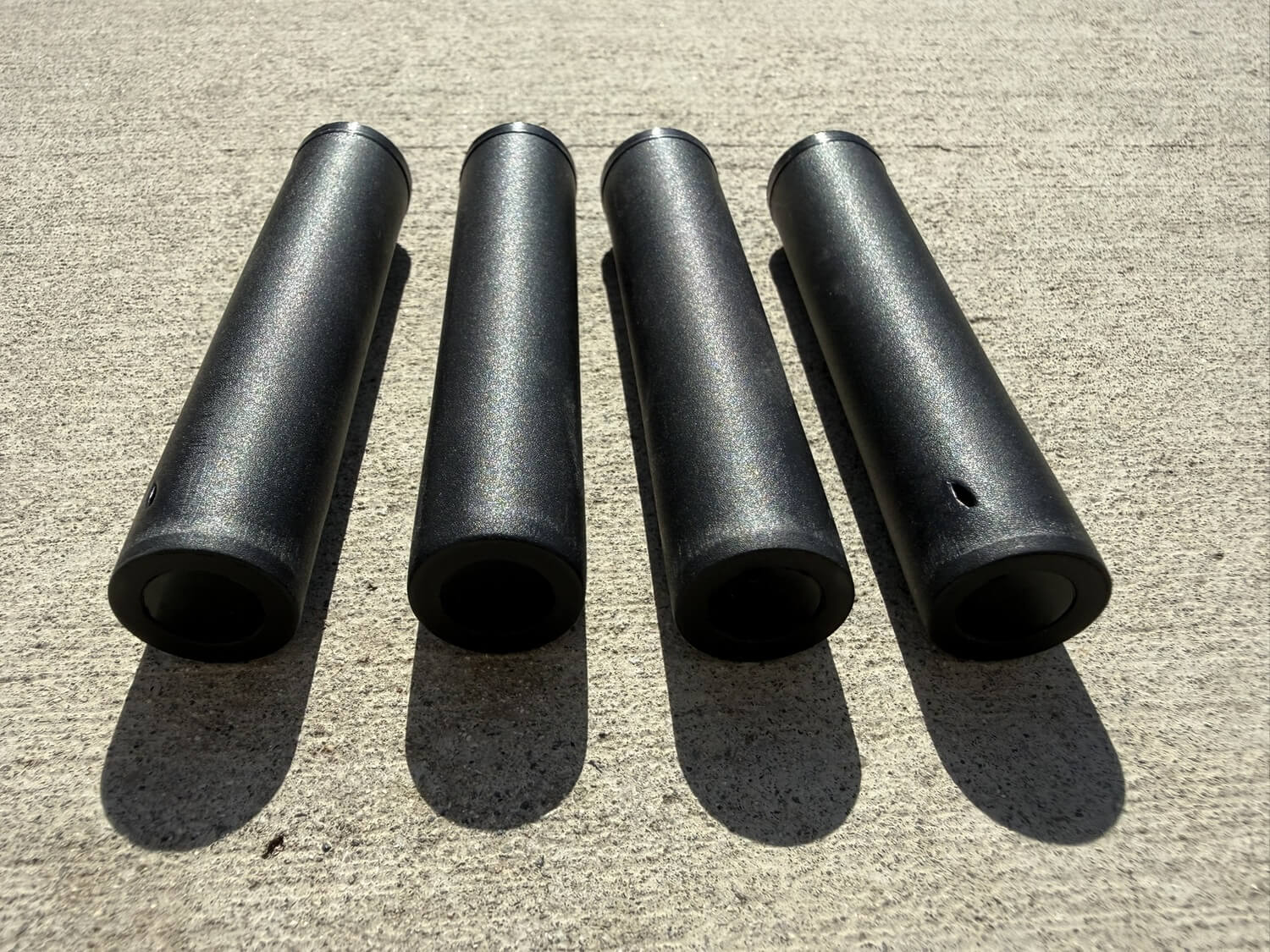

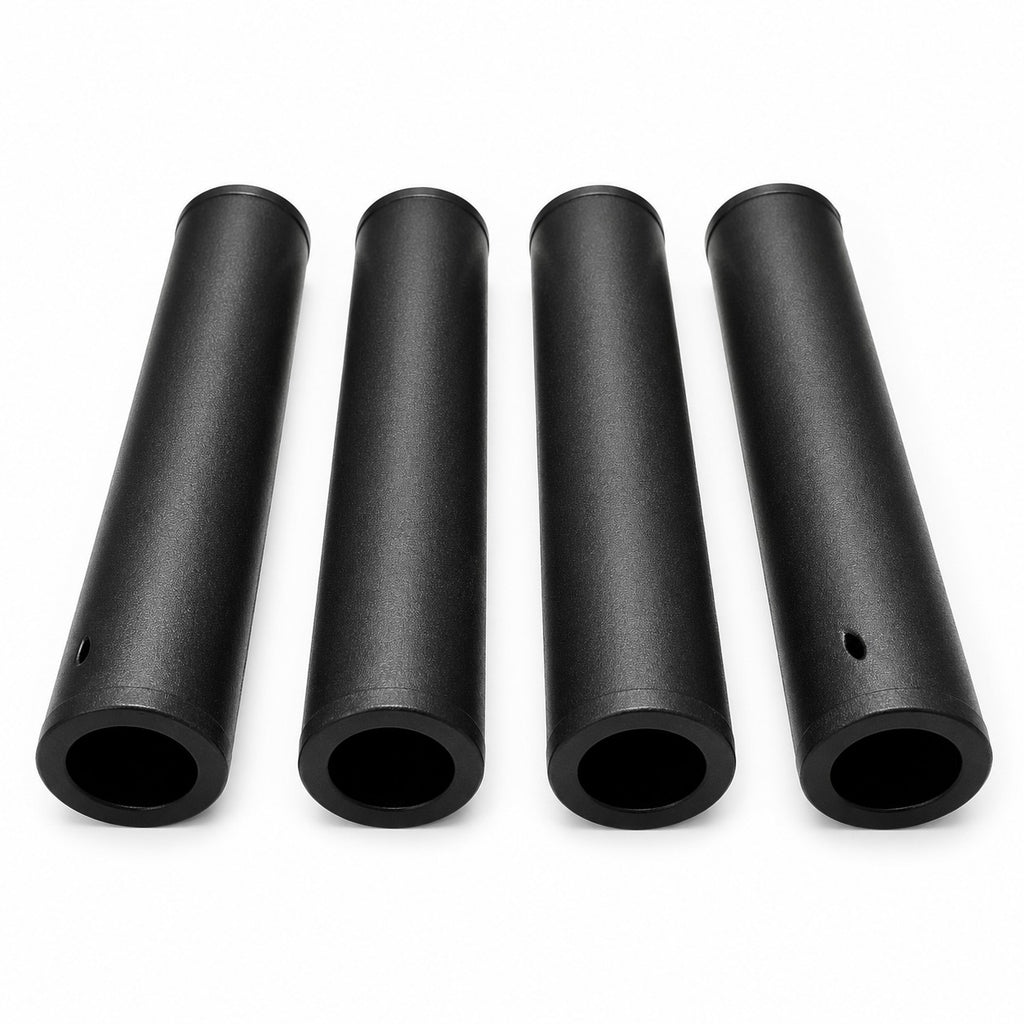

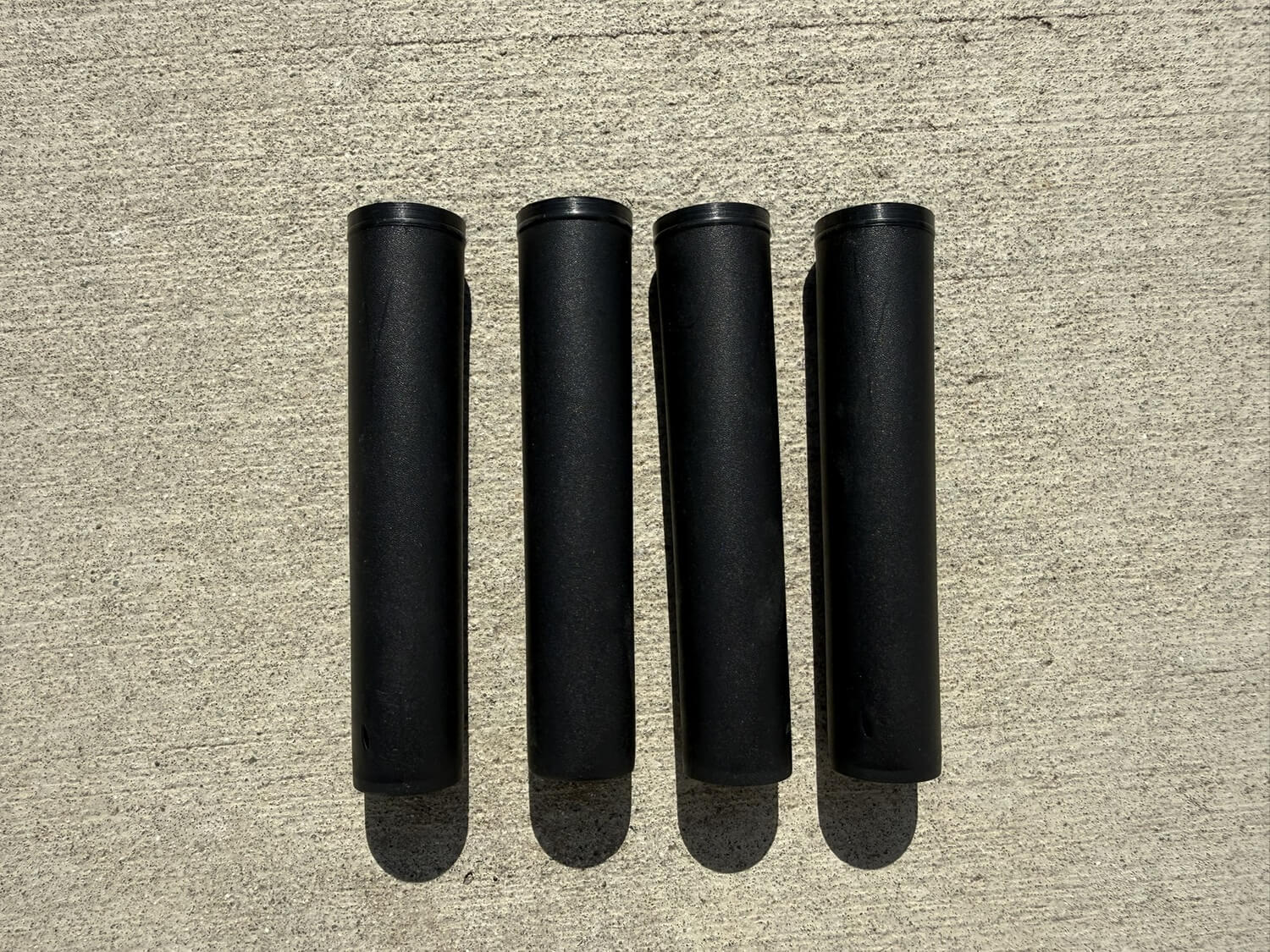

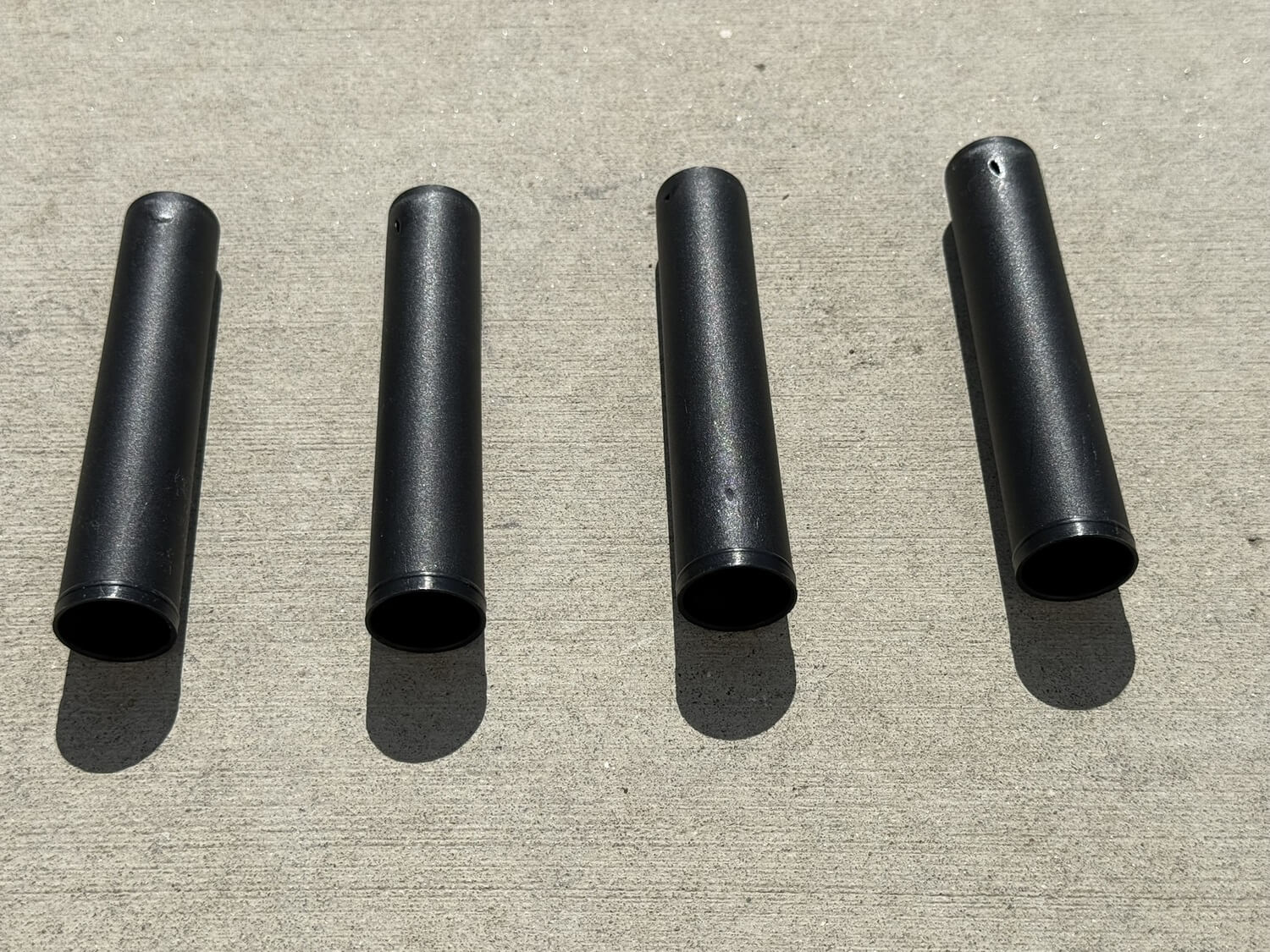

5/8" x 4" Concrete Dowel Caps

Allows Smooth Concrete Joint Movement While Protecting Dowel Bars

The Sandbaggy 5/8" x 4" Plastic Dowel Cap allows concrete slabs to expand and contract properly while maintaining effective load transfer across expansion joints. Installed on one end of a 5/8" smooth dowel bar, it creates the void space needed to reduce cracking and joint stress.

Made from heavy-duty, corrosion-resistant plastic, these dowel caps are durable, easy to install, and ideal for sidewalks, roadways, warehouse floors, parking lots, and other slab-on-grade concrete applications.

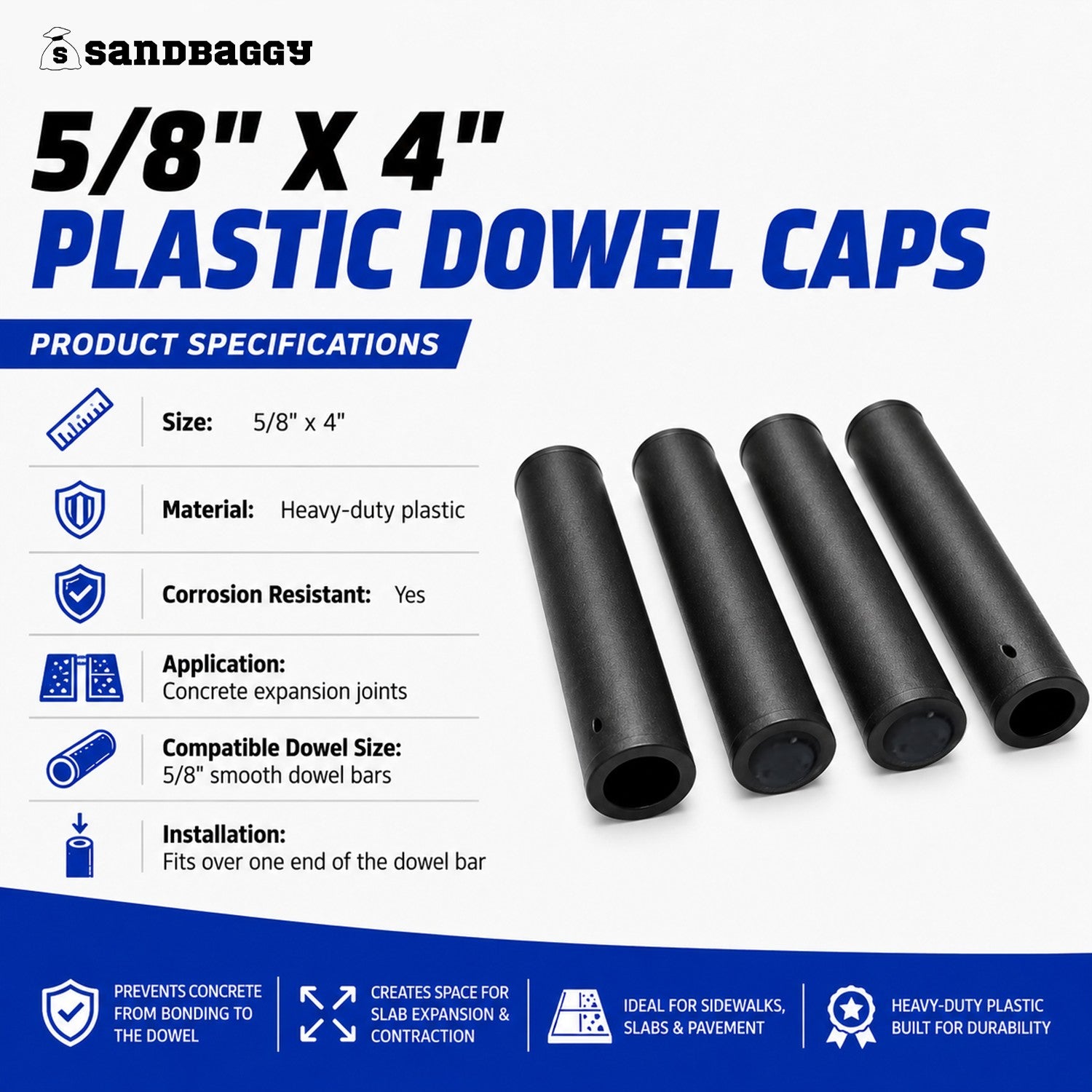

Specs

• Size: 5/8" x 4"
• Material: Heavy-duty plastic
• Corrosion Resistant: Yes
• Application: Concrete expansion joints
• Compatible Dowel Size: 5/8" smooth dowel bars
• Installation: Fits over one end of the dowel bar

Features

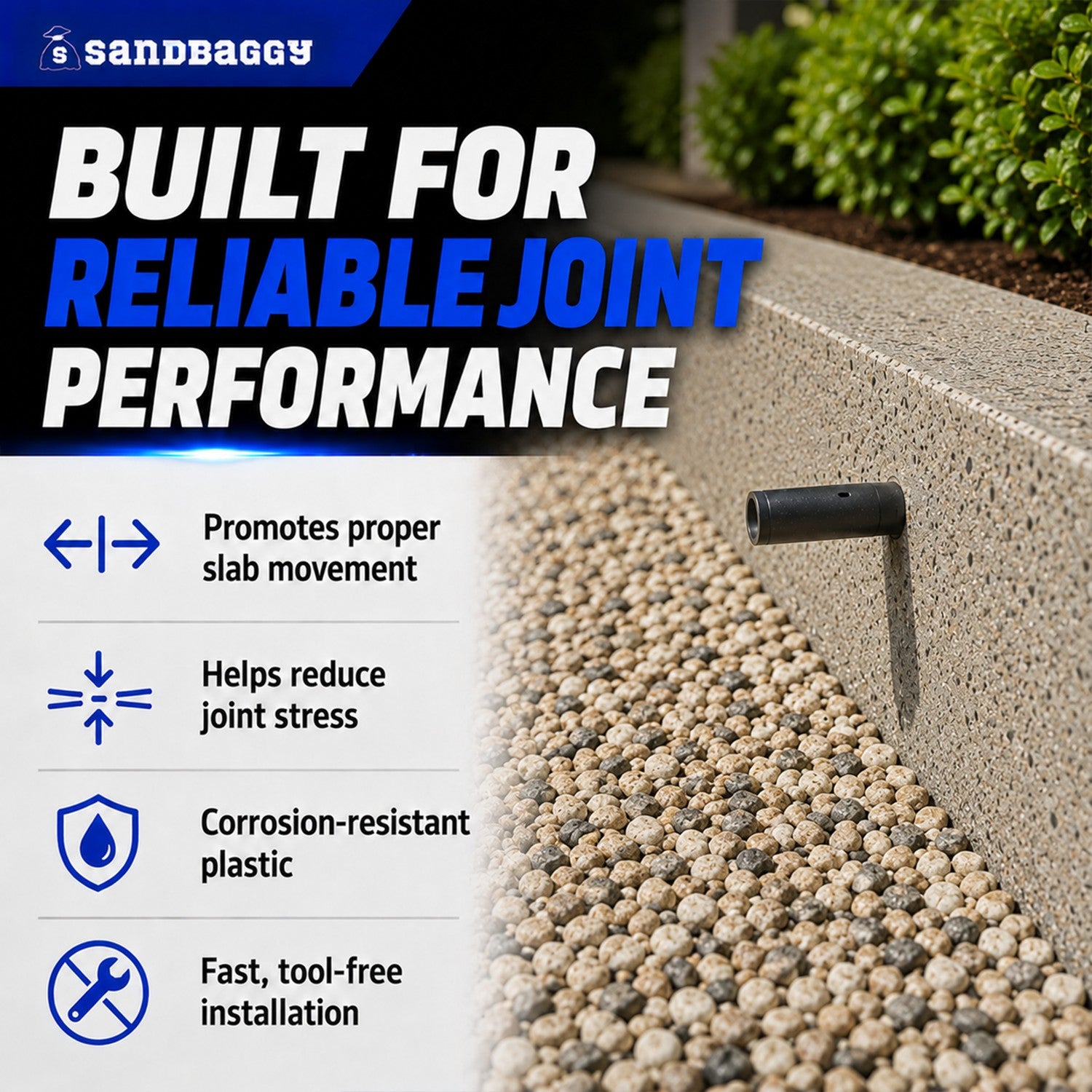

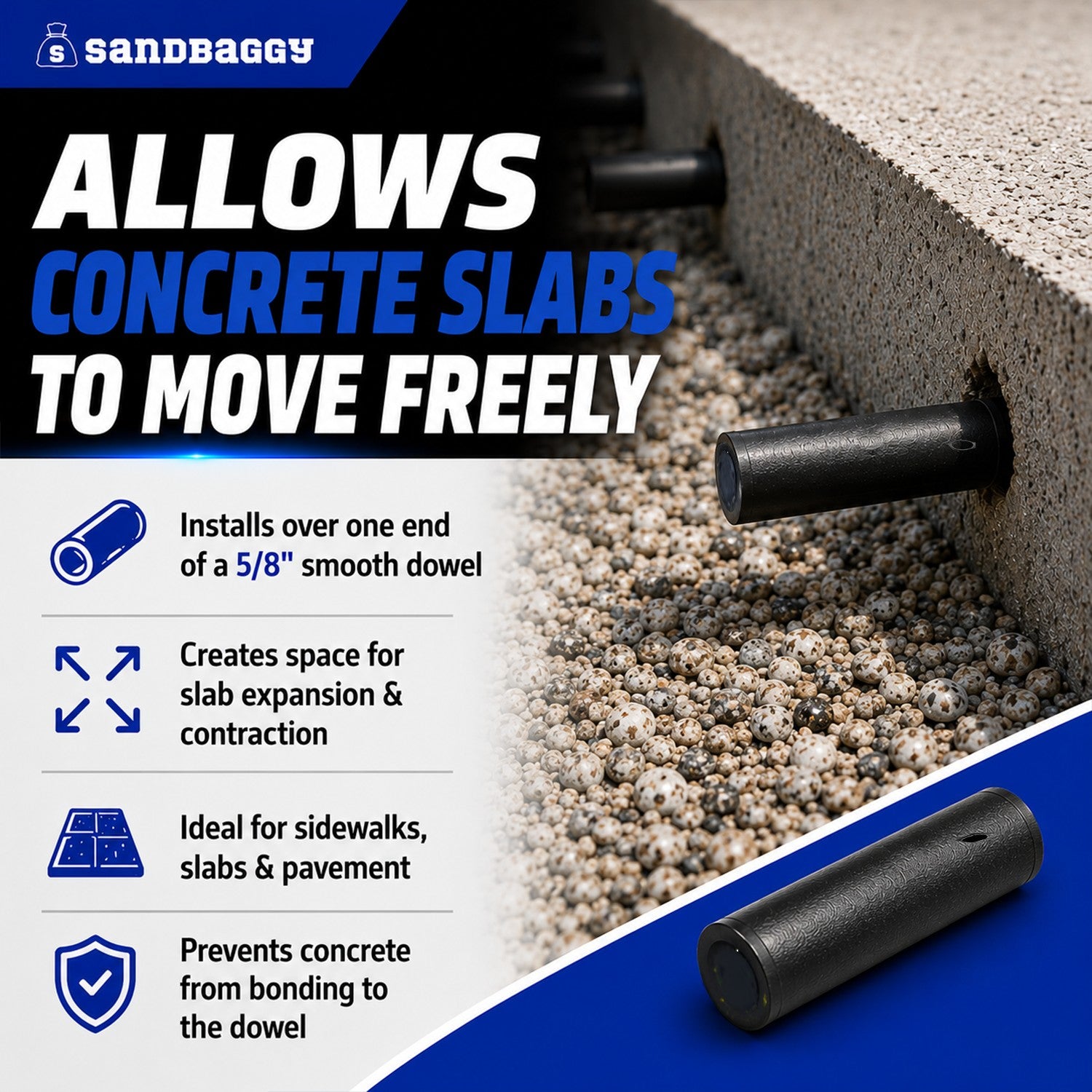

• Allows Proper Slab Movement: Creates the necessary void space for concrete slabs to expand and contract freely, helping reduce stress at expansion joints.
• Protects Dowel Bars: Prevents concrete from bonding to the end of the dowel bar, allowing proper load transfer while minimizing cracking and spalling.
• Heavy-Duty, Corrosion-Resistant Plastic: Molded from durable plastic that won't rust or corrode, providing long-lasting performance in demanding concrete applications.
• Easy to Install: Fits over one end of a compatible 5/8" smooth dowel bar for quick, hassle-free installation before concrete placement.
• Ideal for Concrete Construction: Perfect for sidewalks, roadways, parking lots, warehouse floors, industrial slabs, and other slab-on-grade expansion joint applications.

FAQs

Do I install a cap on both ends of the dowel bar?

No. Typically, a dowel cap is installed on only one end of the dowel bar to allow controlled movement at the expansion joint.

Will these rust over time?

No. They are manufactured from corrosion-resistant plastic and will not rust like metal components.

What size dowel bars are these compatible with?

These caps are designed specifically for 5/8-inch smooth dowel bars.
