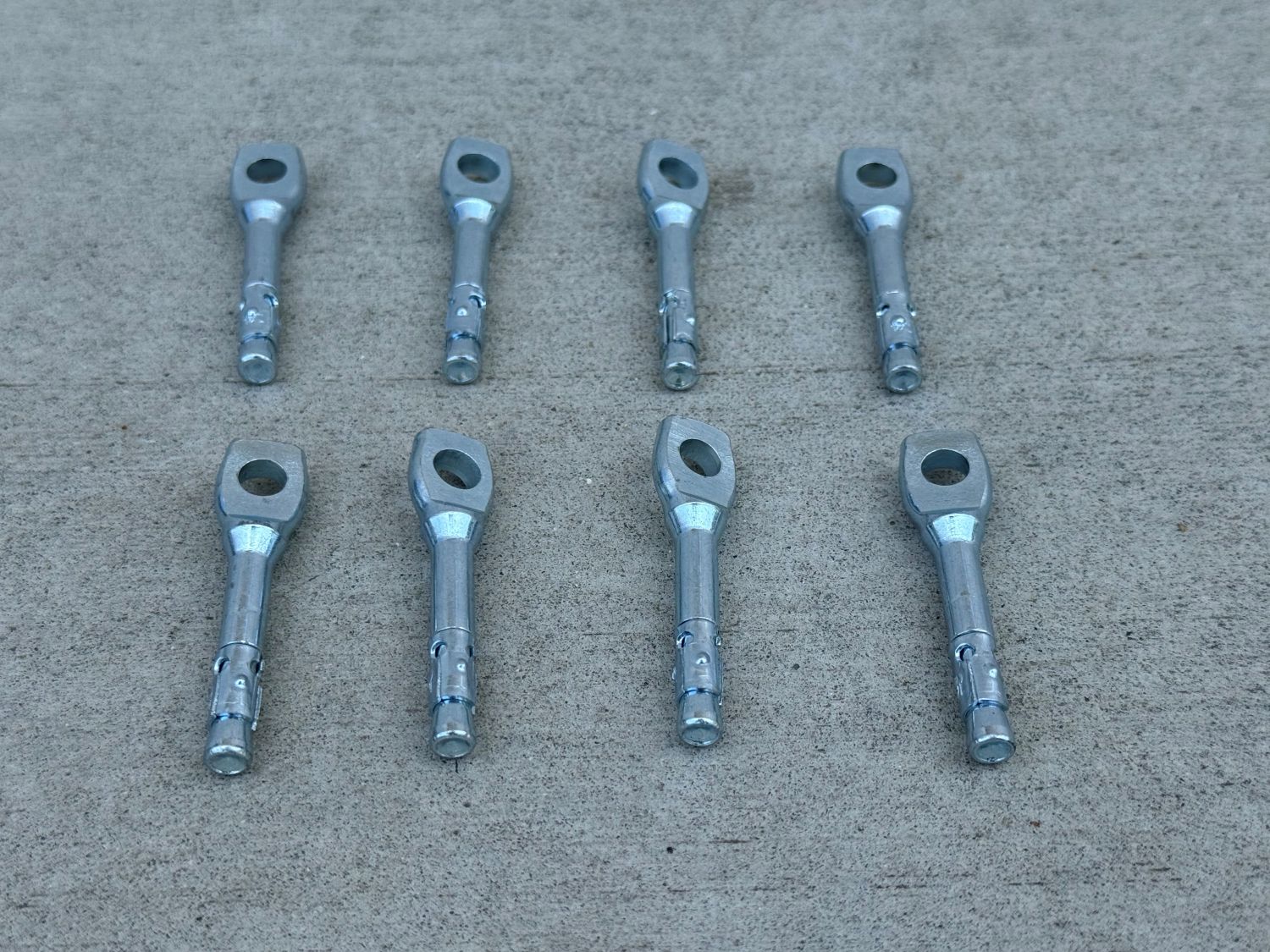

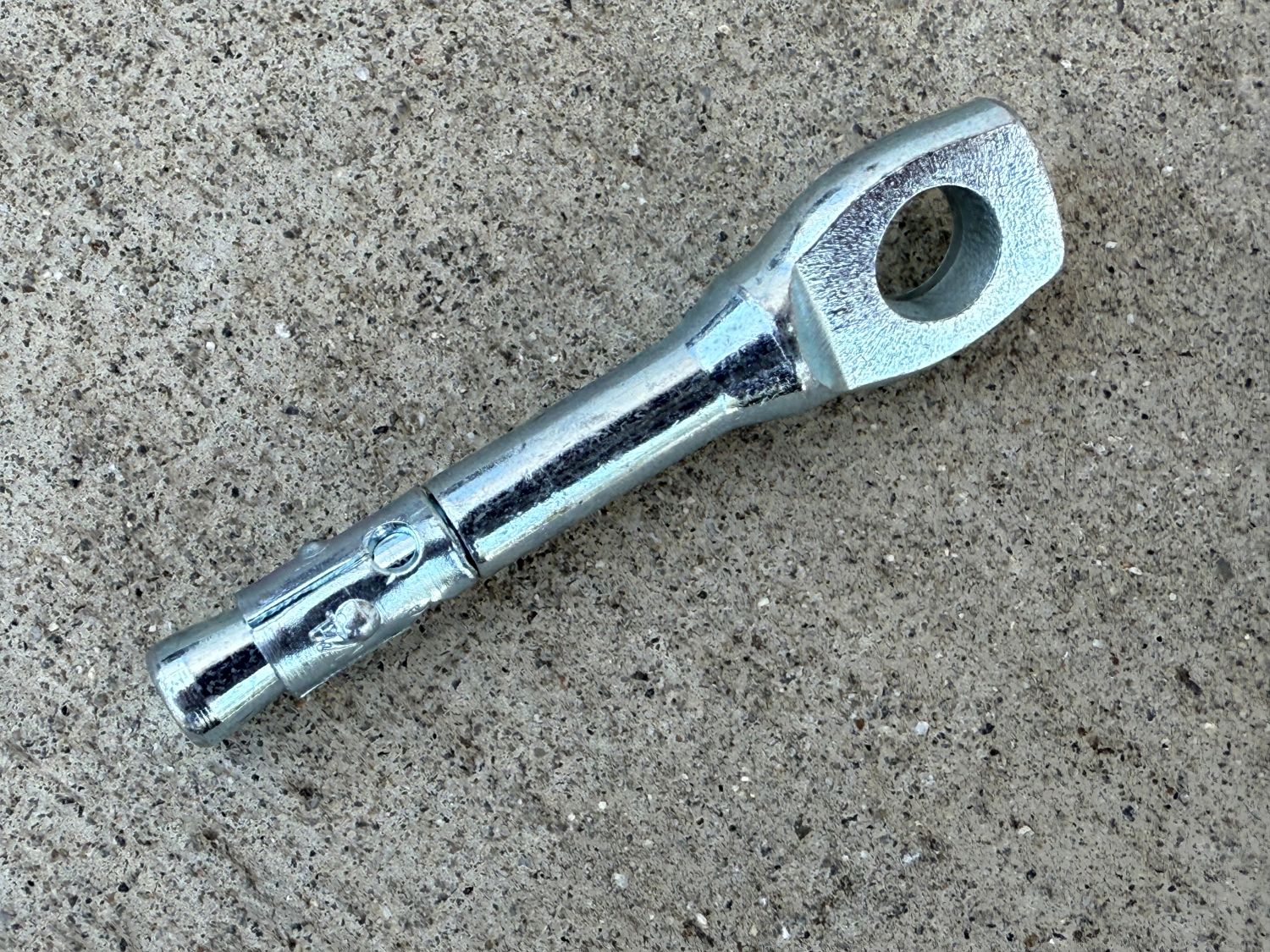

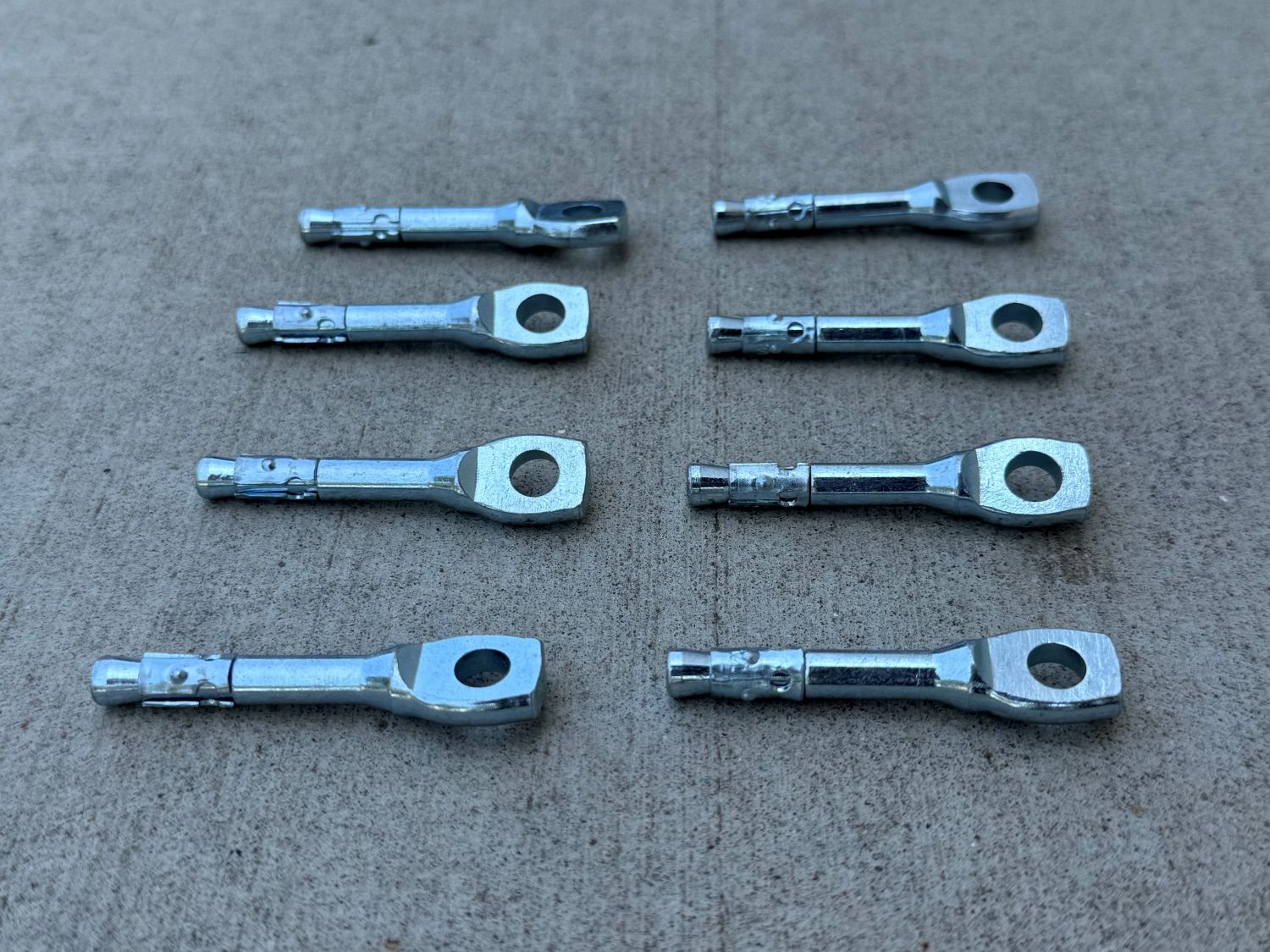

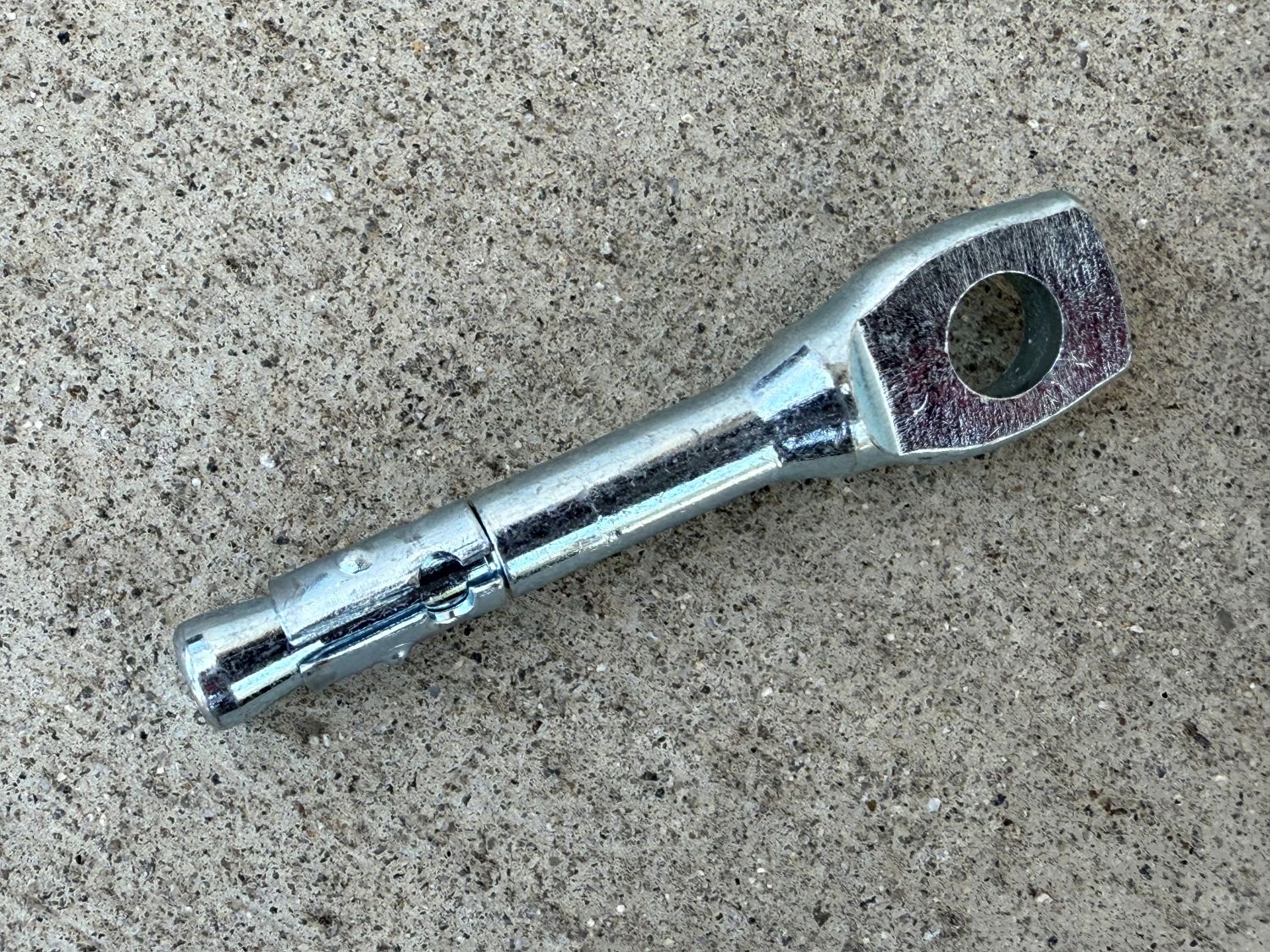

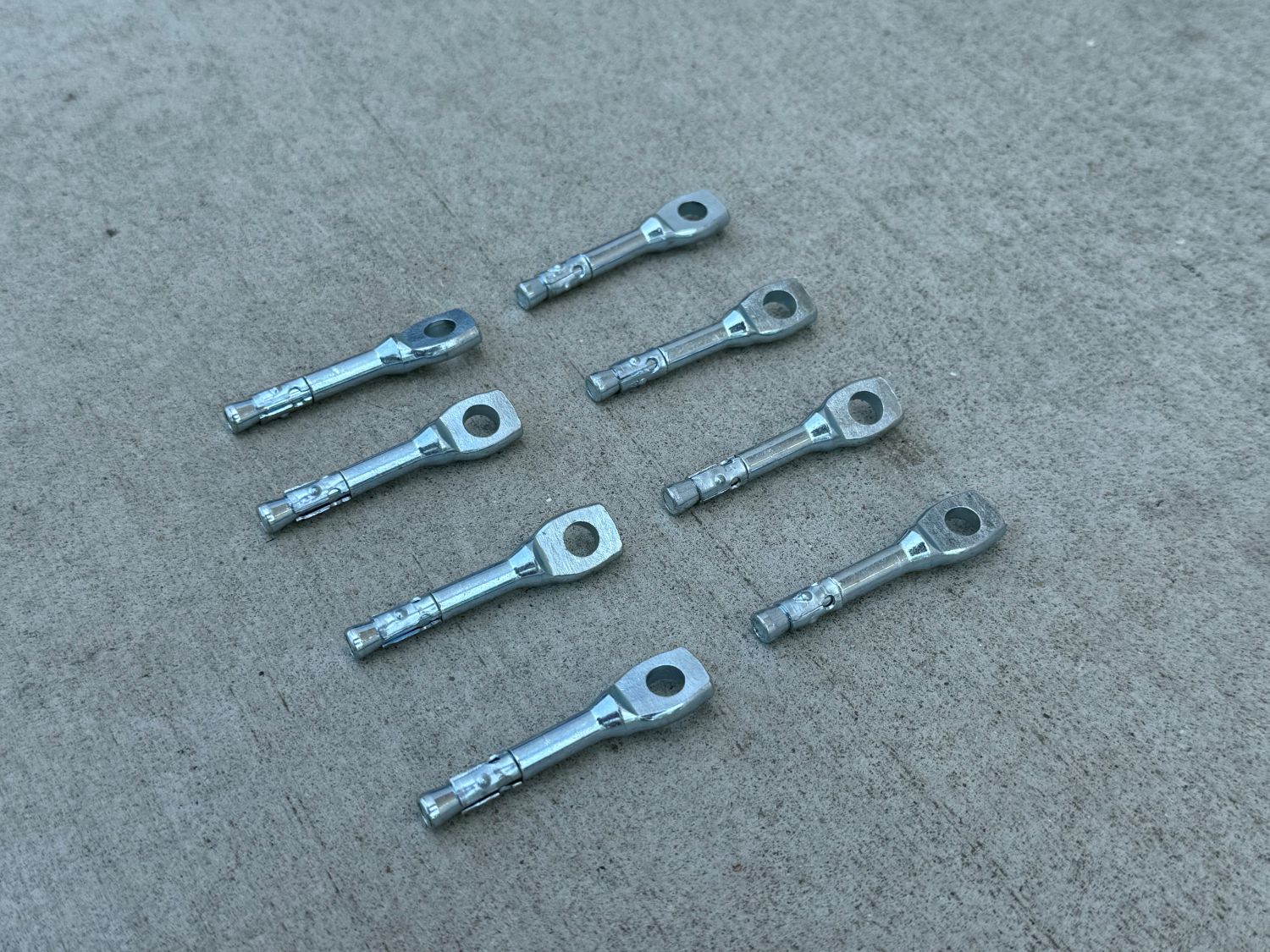

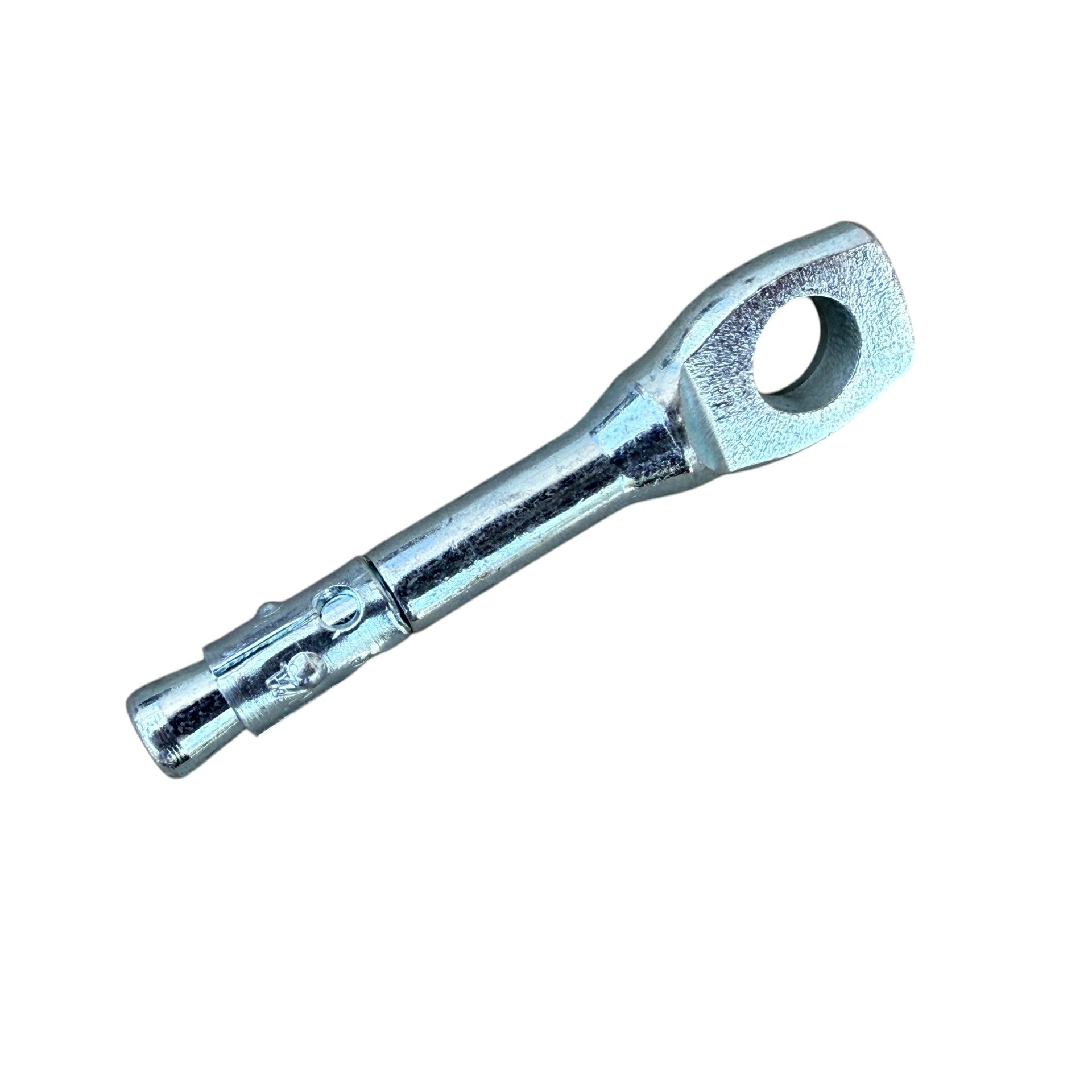

1/4" x 2-1/4" Tie Wedge Anchor | For Suspended Ceiling Wire (Galvanized)

  • $32.00
  • Save $32


Free shipping to continental USA

All orders placed before 12PM PST Monday - Friday are shipped same day (holidays excluded).



The Professional's Solution for Fast, Secure Overhead Anchoring

Tired of slow, unreliable anchors for your suspended ceiling projects? Stop wasting time with fatiguing, hammer-set drop-ins and get the holding power you need, even in brittle or aged concrete.

The Sandbaggy Tie-Wire Wedge Anchor (also known as eye bolt wedge anchors) is engineered for the modern professional who values speed, safety, and certainty. The integrated eyelet and superior expansion clip design let you work faster and more confidently on every job. Each anchor is zinc plated (galvanized) for protection against rust.

Looking for more options? Shop all Sandbaggy Concrete Anchor Bolts.

⚠️ Please Note
  • Designed for use in solid concrete only.
  • Best suited for indoor environments, but can also be used outdoors in dry, non-corrosive conditions.

Specs

  • Anchor Diameter: 1/4"
  • Overall Length: 2-1/4"
  • Head Style: Integrated Eyelet / Tie-Wire Head
  • Base Material: Carbon Steel
  • Finish: Zinc Plated (Electro Galvanized)
  • Expansion Clip Material: Stainless Steel
  • Required Drill Bit Diameter: 1/4"

Features

  • Install Faster & Reduce Dropped Parts: The one-piece integrated tie-wire head eliminates the need to thread on separate nuts or couplings. This means less fumbling, fewer dropped parts, and faster installation on every single anchor point.
  • Get a Rock-Solid Grip: The 360-degree expansion clip provides full contact within the drill hole for a secure, multi-directional bite. This ensures superior holding power and prevents pull-out, even in less-than-perfect concrete.
  • No Special Tools Required: Use the tools you already own. This eye bolt wedge anchor sets with a standard 1/4" drill bit and tightens with the same impact driver or wrench you use for other tasks, simplifying your workflow.
  • Eliminates Installation Fatigue: Say goodbye to the strenuous, time-consuming hammering required by traditional drop-in anchors. Our wedge anchor seats with a few light taps, saving you time and physical effort on every point.
  • Corrosion Resistant: Electro galvanized (zinc plated) finish provides rust protection in indoor environments and dry, non-corrosive outdoor conditions.

FAQ

How is this different from a standard wedge anchor?

The key difference is the integrated tie-wire head (eyelet). This one-piece design saves you the critical installation step of threading on a separate nut or rod coupling, making it significantly faster for suspended ceiling wire, jack chain, and other wire-hanging applications.

What is the advantage over a traditional drop-in anchor?

The primary advantages are speed and ease of installation. This anchor installs in a fraction of the time, uses a standard-size drill bit, and sets with an impact driver. It completely eliminates the time-consuming and fatiguing hammering required to properly set a drop-in anchor.

How strong is this eye bolt wedge anchor?

When installed correctly in solid concrete, this anchor provides a secure connection strong enough for its intended applications, such as supporting the weight of suspended ceiling grid systems, conduit, and other overhead utilities.

What other names does this product go by?

This product is also commonly called a tie wedge anchor, eye wedge anchor, or is part of a tie wire anchor system.
