Heavy Duty Conveyor Belt System (15.75" x 20 ft) | 1,100 lb Cap. | Chevron Rubber Belt
The Affordable, Industrial-Grade Belt Conveyor You Need
Tired of flimsy conveyor systems that can't handle a real workload? We were too. Born from the needs of our own sandbag-filling warehouse, this heavy-duty conveyor belt system for sale is engineered to move serious weight without the premium price tag.
With an impressive 1,100 lb load capacity, this industrial belt conveyor moves materials like gravel, bulk parts, and sandbags with ease. Each material conveyor system is built-to-order, ensuring it fits the specific height and length requirements of your operation.
Looking for more options? Shop all Sandbaggy Belt Conveyors.
- This is a custom-built system with an approx. 60-day lead time. The standard height (24” intake, 28” discharge) and belt will be sent unless you specify different requirements at the time of your order.
- Product Warranty: This conveyor belt product includes a six-month limited warranty covering manufacturer defects in parts only; labor and incidental damages are not included. Warranty claims must be submitted with proof of purchase within the warranty period. This product is provided “as is” without any express or implied warranties beyond what is stated. By using this product, the purchaser agrees to release and hold harmless the seller from any claims, damages, or liabilities arising from personal injury or property damage. Use of this product constitutes acceptance of these terms and a waiver of the right to pursue legal action against the seller.
- All Sales Final – Because this item is custom-made to your specifications, we are unable to accept returns or exchanges under any circumstances. Please confirm all details before placing your order, as all sales are final.

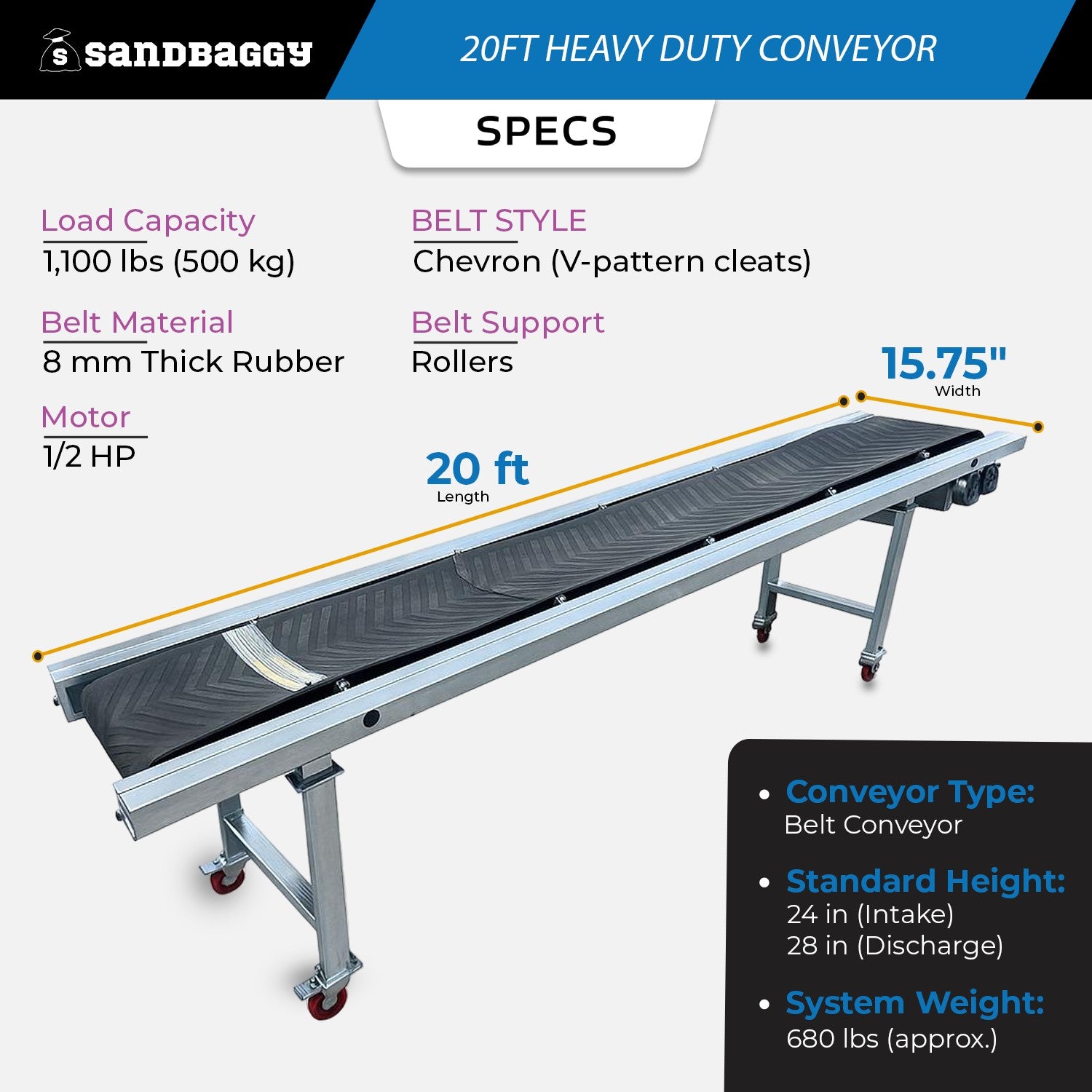

Specs
- Conveyor Type: Belt Conveyor
- Length: 20 ft
- Width: 15.75 inch
- Load Capacity: 1,100 lbs (500 kg)
- Belt Style: Chevron (V-pattern cleats)
- Belt Material: 8 mm Thick Rubber
- Belt Support: Rollers
-
Standard Height:
- 24 in (Intake)
- 28 in (Discharge)
- Motor: 1/2 HP (230/460V, 3-Phase, 60 Hz)
- Speed: Adjustable
- System Weight (approx.): 680 lbs
Features
- Massive 1,100 LB Capacity: Stop wasting time with light-duty conveyors. Our system is built to transport heavy materials continuously, handling over 10 times the weight of entry-level models and preventing operational bottlenecks.
- High-Torque 1/2 HP Motor: The industrial-grade motor provides consistent, adjustable-speed power to move substantial loads smoothly and reliably. It’s designed for continuous duty, ensuring your operations keep running without stalls or interruption.
- Heavy-Gauge Steel Frame: The steel frame offers superior structural integrity and corrosion resistance. It provides a stable foundation that’s essential for safely handling heavy loads in demanding factory conveyor systems.
- Durable 8mm Rubber Belting: Our thick, 8mm rubber belt is engineered to withstand the daily grind. It delivers exceptional resistance to the tearing, impact, and abrasion common when handling heavy or sharp materials like gravel and scrap.
-
Built-to-Order For Your Exact Needs: For a perfect fit for your facility, each factory conveyor system is built upon order. This allows for a level of customization that off-the-shelf products can't match.
- Portable: Built-in wheels let you move the conveyor quickly between workstations or storage areas.
Compliance and Application:
Primary Applications: Our material handling conveyor systems are engineered to excel across a wide spectrum of industrial applications. Its robust design makes it an ideal solution for:
- Sandbag Filling Operations
- Warehousing & Distribution Centers
- Assembly Lines and Parts Transfer
- Scrap and Debris Removal
- Order Fulfillment and Packing Stations
- Bulk Material Conveyor Systems
FAQ
What makes this a "heavy duty conveyor system"?
Its strength. While many conveyors for sale online can only support 80-100 lbs, ours is engineered with a robust frame, a thick rubber belt, and a powerful motor to handle a massive 1,100 lbs. It's built for industrial work, not light hobby use.
What kind of materials can this flat belt conveyor handle?
It's designed to move a wide range of items. We use it for heavy sandbags, and it’s perfect for gravel, sand, crushed rock, packaged goods, scrap metal, and work-in-progress components in a factory setting.
Is this material handling conveyor motorized and electric?
Yes. The system is powered by a 1/2 HP industrial motor running on 230/460V, 3-phase, 60 Hz electricity, providing smooth, continuous movement without manual effort.
Do manufacturers and warehouses use this type of conveyor?
Absolutely. Industrial manufacturers rely on conveyors like this for assembly lines, parts transfer, and bulk material movement, while warehouses use it for order fulfillment and efficient workflow.
Can this conveyor handle gravel and rock?
Yes! The thick rubber belt and sturdy steel frame are built to move heavy materials like gravel, rocks, sandbags, and scrap smoothly without damage or spillage.
What are other names for this product?
These systems are often called belt conveyor systems, material handling conveyors, material conveyor systems, roller belt conveyor, or factory conveyor systems. They all refer to a powered belt designed to move goods and materials efficiently
