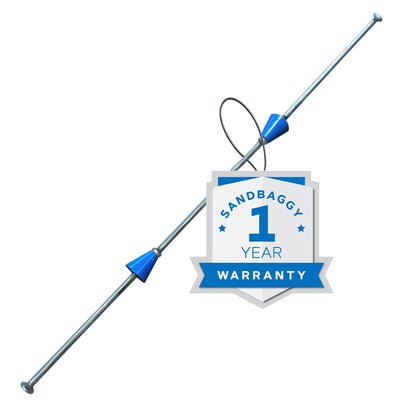

8" x 4 ¾" Stainless Steel Snap Ties For Concrete Forms (Short End) - 1" Plastic Cones

Get Strong, Corrosion-Resistant 8" Concrete Walls

With over 750,000 snap ties sold, Sandbaggy is trusted by concrete contractors nationwide. These short end stainless steel snap ties are designed for 8" wall forming systems and feature a 2,150 lb working load (2:1 safety factor) for dependable performance and proper wall alignment during concrete pours.

Built from construction-grade stainless steel with integral heads and 1" plastic cones, these ties provide a nominal 1" break-back while offering superior resistance to rust and corrosion in demanding environments. Ideal for projects where long-term durability and corrosion resistance are required.

Backed by our 1-Year Ironclad Warranty — built tough and protected against manufacturing defects under normal use.

Specs

• Material
• tie: stainless steel
• cone: plastic
• Thickness: 5.7 mm
• Gauge: 4
• Size: 8" Wall x 4 ¾" End (Short End)
• Cone Diameter: 1"
• Weight: 0.23 lbs.
• Head construction: Integral
• Working Load: 2,150 lbs.
• Safety Factor: 2:1
• Break-back: nominal 1"

Features

• 1-Year Ironclad Warranty: Built tough and backed for 12 full months against manufacturing defects under normal use. If it fails, we repair, replace, or refund. (Does not cover theft, vandalism, tampering, or misuse.)
• Over 750,000 Snap Ties Sold: Trusted by professional concrete contractors across the USA.
• Construction-Grade Stainless Steel: Provides excellent resistance to rust and corrosion for long-term performance.
• Stronger Integral Head Design: Greater durability and holding strength compared to welded head alternatives.
• 2,150 LB Working Load (2:1 Safety Factor): Engineered for stability during concrete placement.
• 1" Plastic Cones – Clean Break-Back: Helps prevent rust staining and provides a nominal 1" break-back for smooth removal.
• Short End Snap Ties For 8" Walls: Designed specifically for 8 inch wall size forming systems.
• Compatible With Sandbaggy Accessories: Works seamlessly with Snap Tie Wedges, Jahn A Brackets, and Jahn C Brackets for a complete forming system.


FAQ

What is a snap tie in construction?

Snap ties are an essential component in formwork for concrete, connecting two distinct surfaces. Made of either plastic or steel, these ties feature a cone-shaped head at one end and a threaded rod on the other. The Jahn A bracket then holds the snap tie in place and also supports the wale or stud.

How do snap ties work?

Snap ties are installed by threading them through form holes, then secured by tightening with a snap tie wedge. This spreads the plastic cones out, locking the forms in place. Once concrete cures, the wedges are removed and cones broken off, freeing the ties from the concrete.

How strong is a snap tie?

Most snap ties have a minimum working load of 2,000 lbs, capable of withstanding the pressure of up to 2,000 lbs of concrete.

How do you seal snap ties?

Snap ties can be sealed with silicone caulk, hydraulic cement, or similar materials for better protection against water seepage into concrete.

How much pressure can a snap tie hold?

Snap ties can withstand 2,000 lbs of concrete pressure, depending on size and material.

What is the difference between short end and long end snap ties?

Short end snap ties have shorter threads on the end of the ties, while long end snap ties have longer threads. The length required at the end of the snap ties will depend on your forming system type.

Snap Tie Calculator

*Disclaimer: This calculator provides an estimate only. Actual needs may vary—please consult an engineer for project-specific requirements.
