1/2" Drop In Concrete Anchor - Coil Threaded (Zinc Plated)

1/2" concrete expansion anchors zinc plated

1/2" Drop In Concrete Anchor - Coil Threaded (Zinc Plated)

$16.00
Save $16

Quantity

Free shipping to continental USA

All orders placed before 12PM PST Monday - Friday are shipped same day (holidays excluded).

Fast, Reliable Anchoring For Concrete Projects!

Our 1/2" Drop In Concrete Anchors (Zinc Plated) are essential for secure installations in solid concrete environments. These female threaded concrete anchors are designed for dry applications and provide reliable fastening with consistent holding values. Each anchor is precision-engineered with internal national coarse threads, ensuring compatibility with 1/2" diameter threaded rods or bolts.

See installation instructions below.

Sandbaggy carries a variety of concrete forming supplies.

Specs

Dimensions
- Diameter: 1/2"
- Outside anchor diameter: 5/8"
- Inside anchor diameter-bolt diameter: 1/2"
- Length: 2"
- Internal thread length: 13/16"
- Thread Size: 1/2" - 13
Material: Carbon Steel Zinc Plated
Surface: Concrete only
Environment: Dry
Type: Female
Thread type: Coil
Bit size: 5/8"
Minimum embedment: 2"
2000 PSI concrete - pull-out (lbs.) *: 2328
- * Values shown are average ultimate values and are offered only as a guide and are not guaranteed. A safety factor of 4:1 or 25% is generally accepted as a safe working load

Features

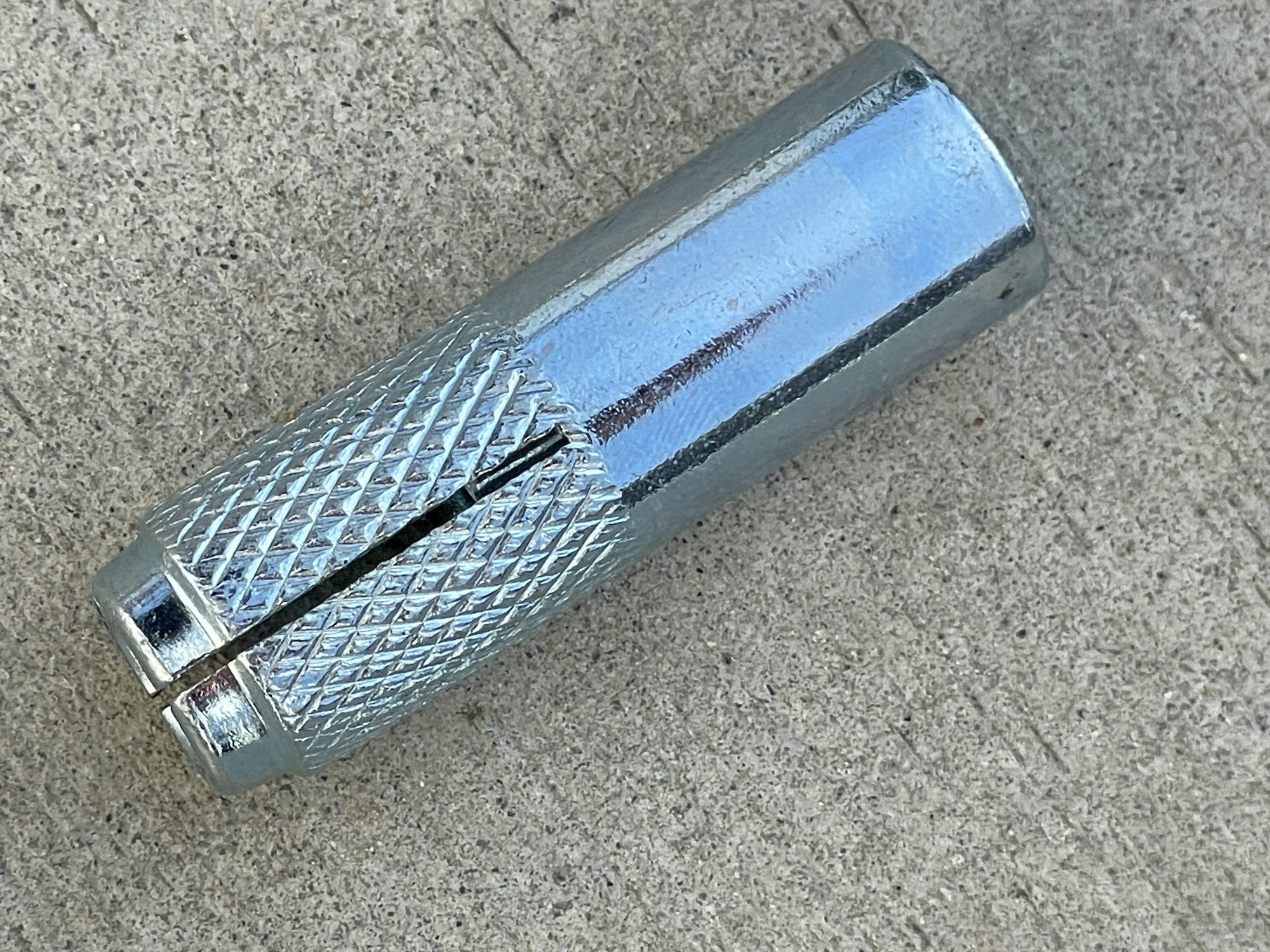

Textured End For Additional Holding Strength! Unlike other drop-in threaded concrete anchors on the market, Sandbaggy’s drop-in anchor features a smooth wall with a textured end for additional grip in concrete.
Internal National Coarse Threads: 1/2" drop in anchor facilitates easy selection and installation of threaded rods or bolts.
Flush Mounting: After installation, nothing protrudes above the concrete surface, maintaining a clean and professional finish.
Consistent Holding Values: Drop in concrete anchors are ideal for applications requiring uniform expansion for reliable fastening in concrete.
Solid Concrete Use: Suitable exclusively for installation in solid concrete, providing robust anchorage in stable environments.
Zinc Plated, Ideal For Dry, Indoor Applications: Ideal for indoor environments where dry conditions prevail, ensuring reliable performance over time. The zinc plated exterior provides a layer of protection from rust and corrosion.

Installation Instructions

Prepare the Hole: Drill a 5/8" hole into the concrete using a carbide-tipped bit meeting ANSI Standards B212.15. Ensure the depth of the hole is equal to or greater than the minimum embedment depth of 2".
Clean the Hole: Remove debris from the hole using a wire brush, vacuum, compressed air, or a blow-out bulb to ensure a clean installation.
Insert the Anchor: Place the drop-in anchor into the hole with the open threaded end facing upwards.
Set the Anchor: Use the appropriate setting tool for 1/2" Drop In Concrete Anchors Zinc Plated. Insert the tool into the anchor and strike the end firmly with a hammer until the anchor is fully set.
Final Adjustment: Once set, the anchor is ready for use. Insert a 1/2" diameter threaded rod or bolt into the anchor and tighten with a maximum torque of 20 ft. lbs.

Please Note

Minimum edge distance: 3-1/8"
Minimum fixture hole diameter (in place): 11/16"
Minimum fixture hole diameter (hole spotted): 1/2"
Maximum torque: 20 ft./lbs.
Bolt length: Fixture Thickness + Embedment Depth

FAQ

What size drill bit for 1/2" drop in anchor?

To install a 1/2-inch drop-in anchor, you typically need to use a 5/8-inch drill bit. This allows for a proper fit that ensures the anchor can be securely placed into the drilled hole.

What is a drop in anchor?

A drop-in anchor is a fastener used in concrete, brick, or stone materials to create a secure connection point for bolts or threaded rods. It consists of an internally threaded sleeve and a cone-shaped expander plug that, when installed correctly, provides a firm hold.

How does a drop in anchor work?

Drop-in anchors are installed by drilling a hole to the necessary depth in concrete/masonry. The anchor is inserted with its lip flush against the surface, and a setting tool drives the internal plug into the sleeve. This creates a dependable anchor point for attaching machinery, fixtures, etc.
